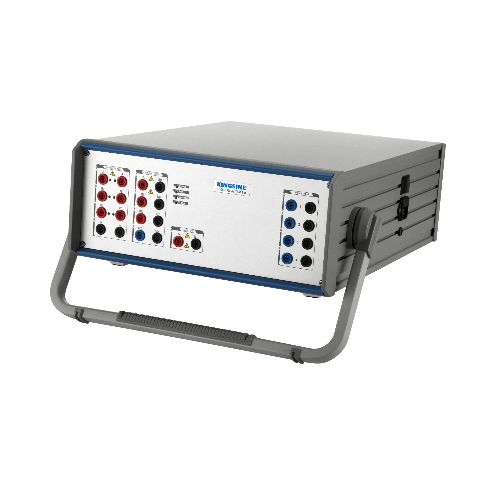

Voltage Outputs:
Output Range & Power:
+ 7×310 V ac (L-N): 90 VA max each
+ 3×350 V dc (L-N): 105 W max each
Accuracy: ±2mV @ 0.2<2V ac
<0.015%Rd+0.005Rg Typ. @ 2~310V ac
<0.04%Rd+0.01Rg Guar. @ 2~310V ac
±10mV @ <5V dc
±0.5% @ ≥5V dc
Voltage Range
+ Range I: 30V
+ Range II: 310V
+ Automatic Range
DC Offset: <10mV Typ./ <60mV Guar
Resolution: 1mV
Distortion: <0.015%Typ. / <0.05% Guar.
Current Outputs
Output Range & Power:
+ 6×35A ac (L-N): 450 VA max each
+ 3×70A ac (2L-N): 850 VA max each
+ 1×100A ac (6L-N): 1200 VA max
+ 3×20A dc (L-N): 300W max each
Accuracy: ±1mA @ <0.5A ac
<0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac
<0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac
±5mA @ <1A dc
±0.5% @ ≥1A dc
Current Range:
+ Range I: 3A
+ Range II: 35A
+ Automatic Range
DC Offset: <3mA Typ./ <10mA Guar
Resolution: 1mA
Distortion: <0.025%Typ. / <0.07% Guar.
Frequency & Phase Angle
Frequency Range: DC~1KHz, 3KHz transient
Frequency Accuracy: ±0.5ppm
Frequency Resolution: 0.001 Hz
Phase Range: -360°~360°
Phase Accuracy: <0.02° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution: 0.001°
Aux. DC Voltage Source (Battery simulator)
Range: 0~350V @ 140W max
Accuracy: 0.5%Rg Guar.
Binary Input
Quantity 8pairs
Type wet/dry, measurement
Threshold 10~600Vdc or potential free, Programmable
Time resolution 10us
Sampling Rate 10KHz
Debounce time 0~25ms (Software Controlled)
Time range Infinite
Time errors ±1ms @ ≤1s, ±0.1% @ >1s
Galvanic isolation Isolated each pairs
Binary Output (Relay Type)
Quantity 4pairs
Type Potential free relay contacts, software controlled
Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity 4pairs
Type: Open-collector, Combination type female
Break Capacity DC 5~15Vdc / 5mA, 10mA max
Response time: 100us
Synchronization
Synchronization Mode GPS, SMA type antenna connector
Power Supply & Environment
Nominal Input Voltage: 110V/220/230V ac, Appointed
Permissible Input Voltage 85~264Vac, 125~350VDC, auto-protective
Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -20℃~70℃
Humidity <95%RH, non-condensing
Others
PC Connection: RJ45 Ethernet, 10/100M
Grounding Terminal: 4mm banana socket
Weight: 17.5 Kg
Dimensions(W x D x H): 468×375×164(mm)
