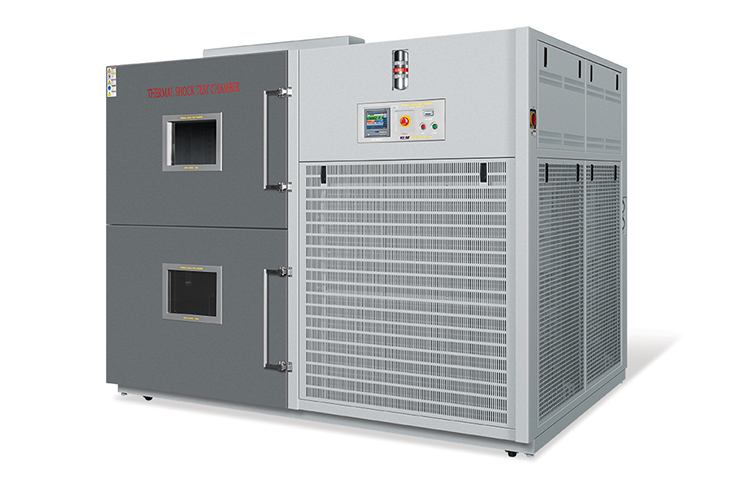

KMT KTC-101 Thermal Shock Tester

Application: All products requiring a thermal shock test

▪ RANGE :

Heating Zone : RT ~ 200℃ / 30min

Cooling Zone : RT ~ 40℃ / 40min

Control Time : 200℃ ~ -40℃ / 10min

Temp Constancy : ±0.3 ℃

▪ TEMP CONTROLLER

Program digital auto turning controller

Touch Screen Type : TEMP 2,000

Summary

The tester is to compare before and after testing by imposing temperature, humidity or

other environmental changes to the product or specimen to be tested.

This Test aims to identify and systemize various kinds of effects in the physical and

chemical conditions that may occur during seasonal changes and transportation and applying them to products.

Feature

▪ A tester is to confirm the abnormality of the specimen due to rapid temperature change

when moving the specimen from a high temperature room and to freezer room in a short time.

▪ 2-zone system with high-temperature and freezer room and all operation is done by

program cycling the recording device attached to it. This enables to check temperature change and cycling at a glance.
