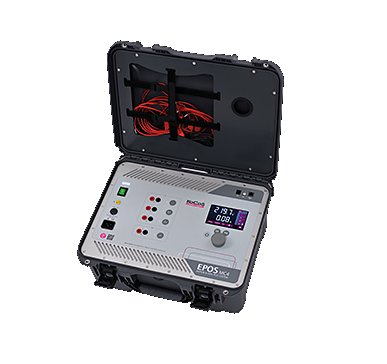

KoCoS EPOS MC4 Motor and Coil Test System (270 VAC / 300 VDC)

Name: KoCoS EPOS MC4 Motor and Coil Test System (270 VAC / 300 VDC)
Brand: KoCoS

ModelEPOS MC4

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Output voltage: up to 270 VAC / up to 300 VDC

Output voltage (motor/coil): independently configurable

Current: max. 40 A

Frequency: DC, 50 Hz, 60 Hz

Measurement voltage: 0...300 VAC/DC

Measurement current: 30/100 AAC/DC

Measuring range: 0.5...1500 Ω

Power supply: Rated voltage 100...240 VAC, 47...63 Hz, current max. 20 A

Connections: 1 × Motor, 1 × I-coil, 2 × O-coil, all connection points on front panel, 4 mm safety sockets

Housing: Hard-top case

Dimensions (W × H × D): 505 × 257 × 409 mm

Weight: 19.7 kg

Screen: High-resolution, resistive 5" touchscreen

Display elements: 4 status LEDs

Interfaces: RJ45, USB-B
