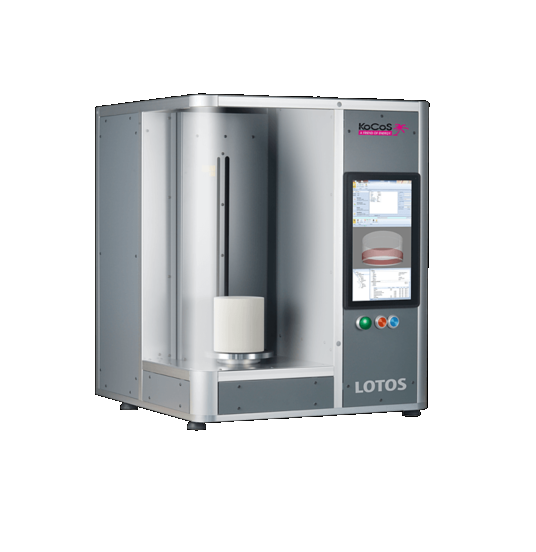

KoCoS LOTOS LS-200 3D measurement and inspection (0 ~ 192 mm/ 200~392mm)

Name: KoCoS LOTOS LS-200 3D measurement and inspection (0 ~ 192 mm/ 200~392mm)
Brand: KoCoS

ModelLOTOS LS-200

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measuring sensor : 3D-Laser sensor

Measuring range (Dimension from … to …): Variable between 0 … 192 mm and 200 … 392 mm

Repeat accuracy : 4µm

Measuring range (Dimension / Diameter): 192 mm

(Difference between largest and smallest dimension of the measured object)

Measuring height range (with one component rotation): 65 mm

Throughput related to object height 15 mm : 4.5 s

Throughput related to object height 60 mm : 4.5 s

Max. Measuring object height : 500 mm

Throughput for single target cross-section : 4.5 s

Linearity - Dimension : ±8-22 µm

Datasheet
