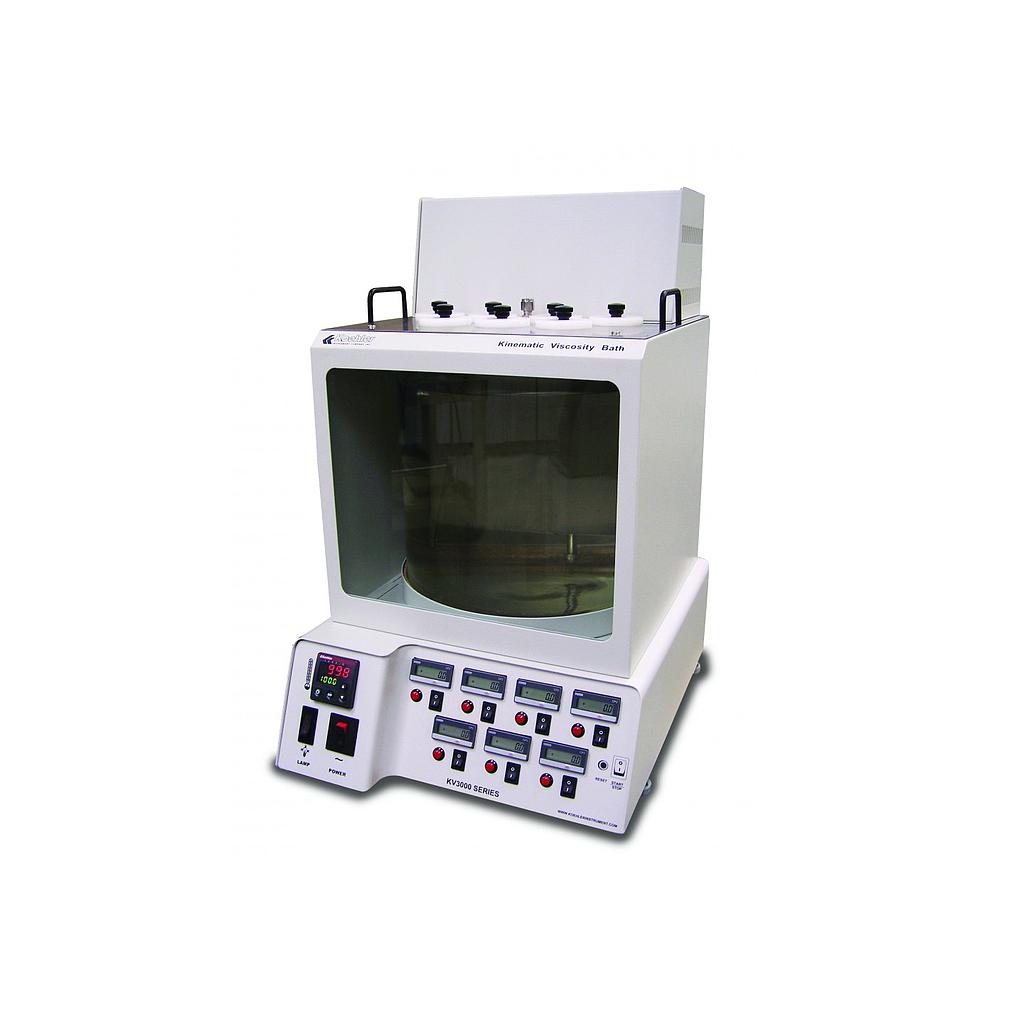

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
Specifications
Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100
Temperature control range: Ambient to 150°C (302°F); sub-ambient to 10°C with external cooling
Display: 0.1°C / 0.1°F resolution, calibrate to 0.01°C / 0.01°F
Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range
Timing: Integrated timing function within Touch Screen Control Panel displayed to 0.1 seconds and accurate within 0.01%
Communication: RS232, RS485 port
Viscometer ports: Seven round 2" (51mm) ports
Bath medium: Water or suitable heat transfer fluid
Bath capacity: 12": 5.8 gal (22L)
Electrical requirements: 220-240V 50/60Hz, Single Phase, 7.3A
Dimensions: LxWxH,in.(cm): 20 1/4 x 15 1/4 x 24 1/2 (51x39x62)
Net weight: 78 lbs (35.5kg)
Shipping Information
Shipping weight: 95 lbs (43.1kg)
Dimensions: 28x24x33 in. (71.12x60.96x83.82cm)
