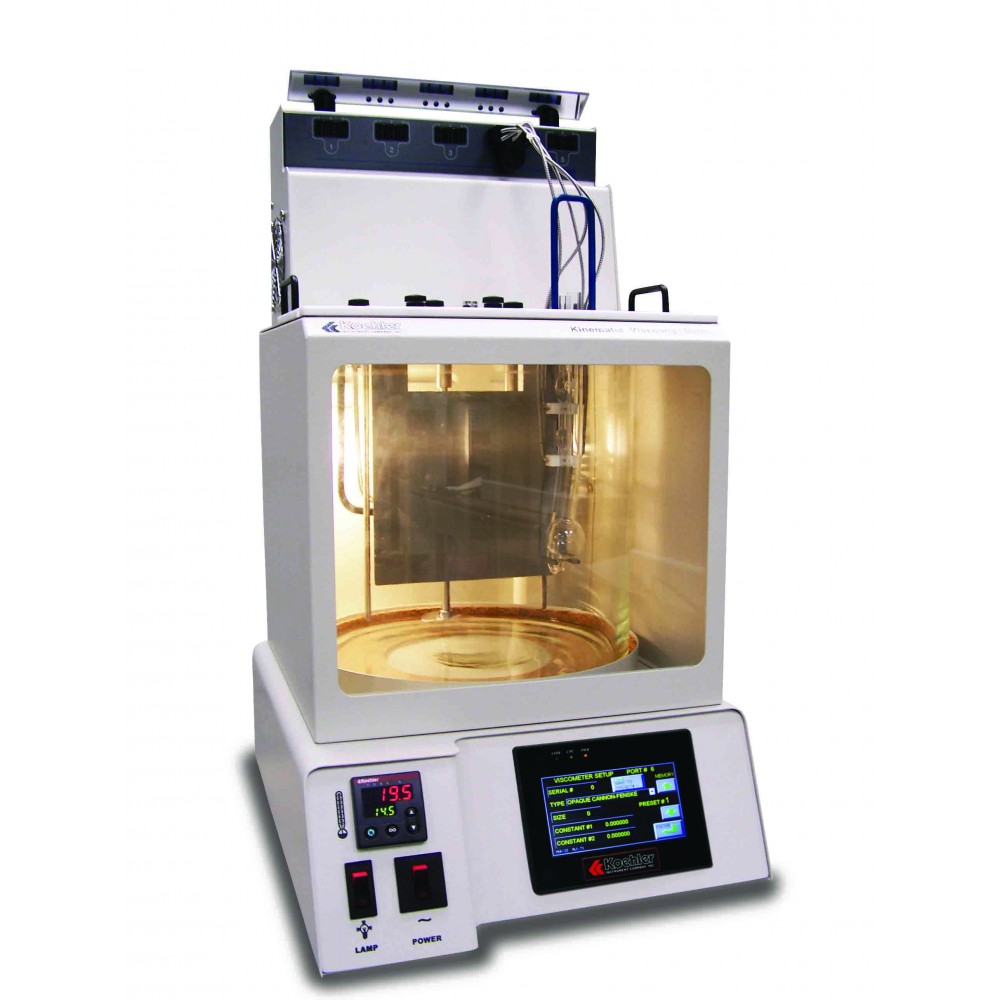

KV5000 model Kinematic Viscosity Baths with optical flow detection system provide automatic viscosity measurements of petroleum and petrochemical products
Specifications
Conforms to the specifications of: ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100
Temperature control range: Ambient to 150°C (302°F); sub-ambient to 10°C with external cooling
Display: 0.1°C / 0.1°F resolution, calibrate to 0.01°C / 0.01°F
Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range
Timing: Integrated timing function within Touch Screen Control Panel displayed to 0.1 seconds and accurate within 0.01%
Communication: RS232, RS485 port
Viscometer ports: Seven round 2" (51mm) ports
Bath medium: Water or suitable heat transfer fluid
Bath capacity: 18": 8.9 gal (33.7L)
Electrical requirements: 220-240V 50/60Hz
Dimensions: LxWxH,in.(cm): 20 1/4 x 15 1/4 x 30 1/2 (51x39x77)
Net weight: 90 lbs (41kg)
Shipping Information
Shipping weight: 120 lbs (54.5kg)
Dimensions: 28x24x33 in. (71.12x60.96x83.82cm)
