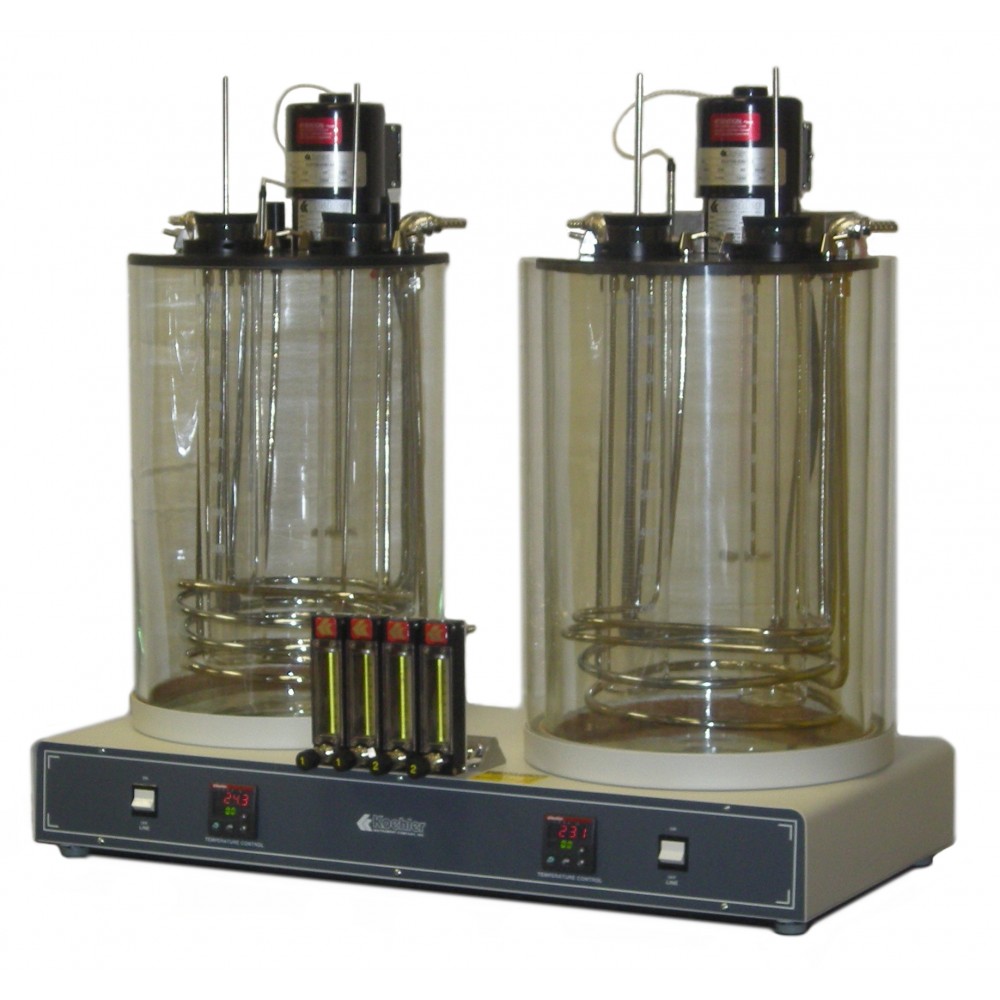

Foaming of lubricating oils in applications involving turbulence, high speed gearing or high volume pumping can cause inadequate lubrication, cavitation, overflow and premature oxidation.
Specifications
- Conforms to the specifications of: ASTM D892, D6082; IP 146; DIN 51566; FTM 791-3211; NF T 60-129
- Temperature control:
+ Digital setpoint and displays °C/°F switchable
+ Built-in overtemperature cut-off protection
- Bath temperature:
Left (Cold) bath: External chiller required to perform Sequence I and III at 24°C
Right (Hot) bath: Ambient to 150°C (302°F)
- Air flow rate: 94mL/min and 200mL/min
- Bath capacity: 9 gal (38.5L) each
Dimensions
- lxwxh,in.(cm): 32 1⁄4x15x31 1⁄4 (82x38x79.4)
- Net weight: 108 lbs (49kg)
Shipping information
- Shipping weight: 309 lbs (140.2kg)
- Dimensions: 45x28x56 in. (114.3x71.1x142.2 cm)
Included accessories
- Test cylinders, 1000mL (4)
- Diffuser stones, calibrated and certified (4)
- Air delivery tube assemblies (4)
- Air outlet tubes (4)
- Rubber stoppers (4)
- Bath jars (2)
- Support rack (1)
- Acrylic safety shield, 18"
