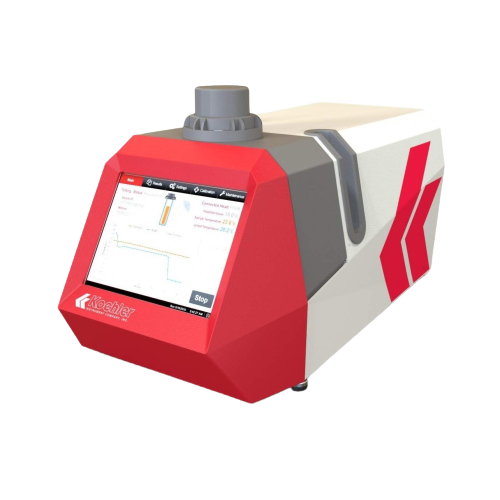

The Automatic Cloud and Pour Point Analyzer is a state of the art piece of equipment for measuring cloud point by optical detection and pour point with automatic tilt.
Specifications
Meets the requirements of: ASTM D5771, D5950
Excellent Correlation to: ASTM D97, D2500, D5853, D6074, D6158 ; ISO 3015, 3016; IP 15, 219; DIN 51597; FTM 791-201; NF T 60-105; JIS K2269
Detection: Pour point: Automatic tilting
Cooling: Internal Cooling System
Temperature range: -105°C to +50°C (-157°F to +122°F)
Temperature accuracy: ±0.1°C
Tilt interval: 1°C or 3°C as per test method (User defined for custom method 1 °C to 5 °C)
Interfaces: USB (4), Ethernet
Display:10.4" Color Touch Screen
Password protection: Multi-level password capability
Electrical requirements: 100-240 VAC 50/60Hz, Single Phase
Dimensions
- WxDxH,in.(cm): 12.5x26.25x15.5 (31.75x66.68x39.37)
- Net Weight: 90 lbs (41kg)
