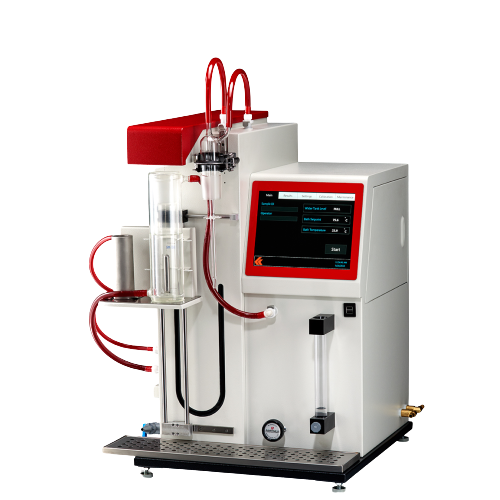

The ability of a turbine, hydraulic, or lubricating oil to separate entrained air is a key performance characteristic in applications where agitation causes a dispersion of air bubbles in the oil. To determine air release properties, the sample is heated to a specified test temperature and blown with compressed air.
Specifications:
- Conforms to the specifications of: ASTM D3427; IP 313; ISO 9120; DIN 51381; NF E 48-614; NF T 60-149; BS 2000 Part 313
- Temperature range: Ambient to 75°C (167°F)
- Sample temperature Stability: ±0.1°C
- Air temperature Stability: ±0.2°C
- Density: ±0.001g/mL
Electrical requirements: 230V 50/60Hz Single Phase
Dimensions:
- WxDxH,in.(cm): 24x23x34 (60.96x58.42x86.36)
- Net weight: 115 lbs (53kg)
Included accessories:
- Sinkers, 5mL and 10mL
- Integrated Balance
- Integrated Circulator
- Air Bath for Sinker
- Tubing and Fittings
- Platinum Wire
- Jacketed Test Vessel
