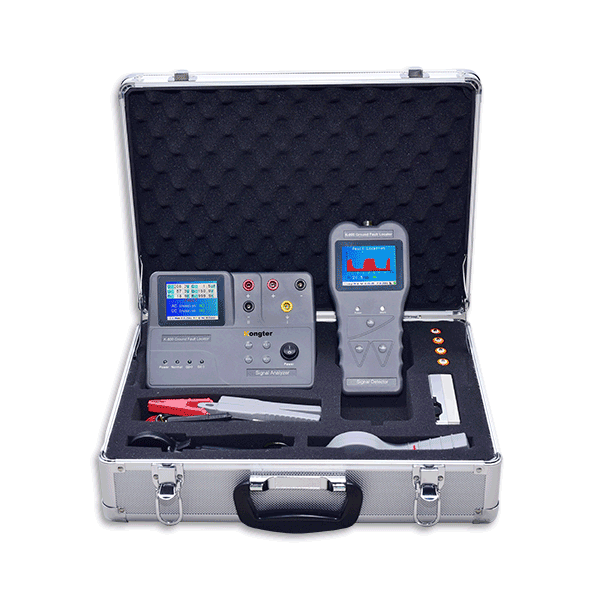

Kongter K-800 Ground Fault Locator

* Signal analyzer specification:

+ Operation environment

- Working power: DC40V-300V

- Temperature: -20℃—55℃

- Humility:0—90%

+ DC voltage measurement

- Measurement range:0-300V

- Resolution: 0.1V

- Accuracy: 0.2%

+ AC voltage measurement

- Measurement range: 0-300V

- Resolution: 0.1V

- Accuracy: 0.5%

+ Insulation resistance measurement

- Measurement range: 0-999.9KΩ

- Resolution: 0.1KΩ

- Accuracy: ≤±5%

+ Measurement Bridge:

- Adjustment range: 0mA, 0.25mA, 0.5mA, 1mA, 2mA & 4mA(optional)

- Frequency range: 0.25Hz

+ Grounding detection range: up to 200KΩ

+ Distributed capacitance measurement

- Measurement range: 0-999uF

+ Measurement waveform: square wave & sine wave

+ Working mode: compulsory signal & automatic signal

+ Display: 320×240 pixels TFT

+ Weight and dimension: 0.448kg, 200*145*75mm

* Signal detector specification

+ Grounding resistance measurement

- Measurement range:0-500KΩ

- Resolution: 0.1KΩ

- Accuracy: ≤±10%

+ Frequency spectrum analysis

- Number of channels: 1

- Frequency range: 0.125-12.5Hz

- Resolution: 0.125Hz

+ Display period of current waveform: 8s

+ Measuring range for feeder: 0~2A

+ Current measurement range: -100~+100mA

+ Current resolution: 0.01mA

+ Display: 320×240 pixel TFT

+ Clamp jaw size: Ф30mm, Ф40mm and Ф10mm (optional)

+ Power supply: 5V

+ Weight and dimension: 0.303kg, 215*100*33mm
