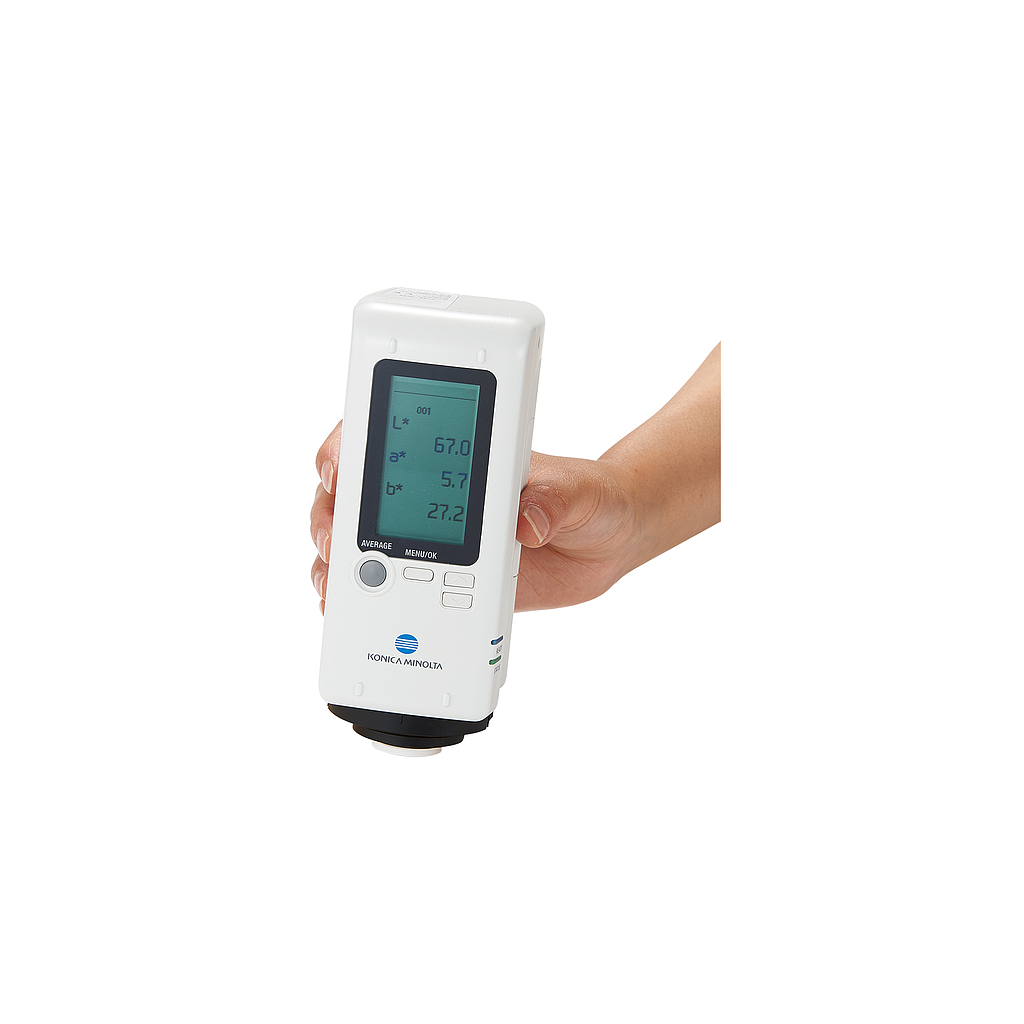

KONICA MINOLTA CR-20 Color Reader

Illuminating/viewing geometry:

8° : de (8°illumination angle/diffuse viewing: specular component excluded) (conforms to DIN 5033 Teil 7, JIS Z 8722 condition d, ISO 7724/1, CIE No. 15, ASTM E 1164)

Detector: Silicon photocells (6 pcs.)

Light source: Pulsed xenon lamps

Measurement time: Approx. 1 sec

Battery performance: Approx. 2,000 measurement at 10-sec. intervals when using alkaline-manganese batteries

Measurement area: Approx. : ø8 mm

Repeatability: Standard deviation within ΔE*ab 0.1 (when a white calibration plate is measured 30 times at 10-second intervals)

Display languages: English, Japanese

Interface: USB2.0

Observer: 10° Standard Observer

Illuminant: D65

Display data: Colorimetric data, average (up to 999 times)

Color spaces: L*a*b*, L*C*h, Yxy, XYZ, Munsell (D65)

Colorimetric Indexes: WI (CIE/ASTM E 313-96), Tint (CIE/ASTM E 313-96), YI (ASTM E 313-96)

Data memory: Sample data (up to 1,000)

Operation temperature/ humidity range: 0 to 40°C, relative humidity 85% or less (at 35°C) with no condensation

Storage temperature/ humidity range: -20 to 40°C, relative humidity 85% or less (at 35°C) with no condensation

Power: 4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable batteries, USB bus power or special AC Adapter

Size (W x H x D): 66 x 159.5 x 85 mm

Weight: 420 g (without batteries)
