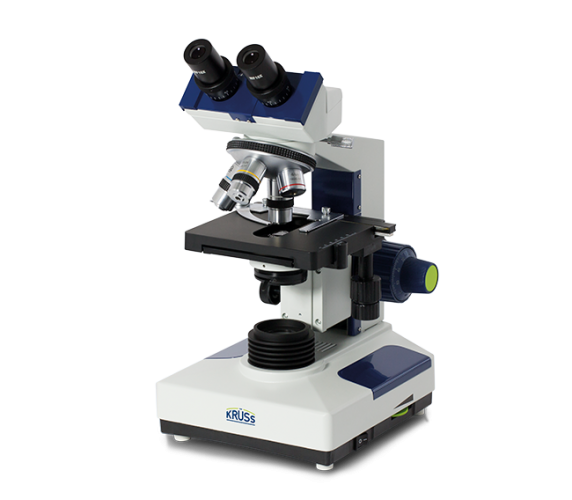

Device with basic equipment and LED illumination
Basic Equipment:
Optical Head: Inclined optical head, Symmetrical eye distance adjustment (55 – 75 mm), Dioptre compensation with scale
Objective Revolver: Quadruple
Objectives: Achromatic
4x 0.10 NA 17.04 mm working distance
10x 0.25 NA 8.05 mm working distance
40x 0.65 NA 0.32 mm working distance:
100x 1.25 NA 0.13 mm working distance
Eyepieces: 10x, focal length 25 mm
Condenser: Double lens ABBE Condenser, NA 1.25, with centering, height adjustment and filter holder
Illumination: 6 V 20 W halogen bulb with brightness control. LED for models with the description LED
Microscope Stage: With 0.1 mm increment memory scale, left-right range of movement 74 mm, forwards - backwards 30 mm.
Stand: Made of metal with coaxial coarse/fine knob with a range of 30 mm each. The right coarse adjustment knob comes with a mobility adjustment, the left coarse adjustment knob comes with a quick focusing adjustment
Further Equipment: Iris diaphragme, pivoting filter holder, height adjustment, glass filters in blue, yellow and green
