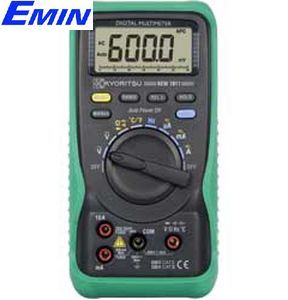

KYORITSU 1011 Digital Multimeters

In Stock: 12 Unit

ManufacturerKYORITSU(View more products from this manufacturer)

Model1011

OriginChina

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Directive.
- DCV: 600mV/6/60/600V
- ACV: 600mV/6/60/600V
- HZ: 10/100/1000KHz/10MHz
- DCA: 600/6000μA/60/600mA/6/10A
- ACA: 600/6000μA/60/600mA/6/10A.
- Ω: 400Ω/4/40/400KΩ/4/40MΩ
- Check diodes: 2.8V/0.4mA
- Check convergence: 40nF/400nF/4 μF/40 μF/400μF/4000μF
- Temperature: -50 ... 300do C (-58 ... 572do F)
Warranty: 12 months
Manufacturer: Kyoritsu - Japan
Origin: China

•	Temperature measurement, selectable for ºC and ºF
•	6040 counts with Bar Graph display
•	MIN/MAX function enables to record min & max value
•	REL(relative value) function to indicate the measurement variation

1011

DC V

600.0mV/6.000/60.00/600.0/600V
(Input Impedance: 10MΩ, 100MΩ only 600mV)
|±0.5%±2dgt (600.0mV/6.000/60.00/600.0V)
|±0.8%±3dgt (600V)

AC V

6.000/60.00/600.0/600V
(Input Impedance: 10MΩ)
|±1.0%±3dgt (6.000/60.00/600.0V)
|±1.5%±3dgt (600V)

DC A

600/6000µA/60/600mA/6/10A
|±1.2%±3dgt (600/6000µA/60/600mA)
|±2.0%±5dgt (6/10A)

AC A

600/6000µA/60/600mA/6/10A
|±1.5%±4dgt (600/6000µA/60/600mA)
|±2.2%±5dgt (6/10A)

Ω

600Ω/6/60/600kΩ/6/60MΩ
|±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ)
|±2.0%±3dgt (60MΩ)

Continuity buzzer

0~600Ω (Buzzer sounds below 100Ω)

Diode Check

2.8V Release Voltage:Approx. 0.4mA Test Current

Capacitance

40/400nF/4/40/400/4000µF

Frequency

10/100/1000Hz/10/100/1000kHz/10MHz

DUTY

0.1~99.9% (Pulse width/Pulse period)
|±2.0%±2dgt (~10kHz)

Temperature

-50~300ºC (-58~572ºF)
(with the use of Temperature probe 8216)


Note:	KEW 1011 can measure max. 700ºC In order to measure over 300ºC, please use a K-type temperature probe available in the market.

Display

6040 Counts

Withstand Voltage

AC 3700V / 1min.

Applicable standards

IEC 61010-1 CAT.III 300V Pollution degree 2
IEC 61010-1 CAT.II 600V Pollution degree 2
IEC 61010-031
IEC 61326

Power Source

R6P (1.5V) × 2 (Auto-power-OFF within 15 minutes)

Dimensions

161(L) × 82(W) × 50(D)mm

Weight

Approx. 280g

Accessories

7066A (Test leads)
8216 (K-type Temperature probe)
0.8A/600V (Ceramic Fuse) × 1

built-in
10A/600V (Ceramic Fuse) × 1

built-in
R6P × 2

Instruction Manual
