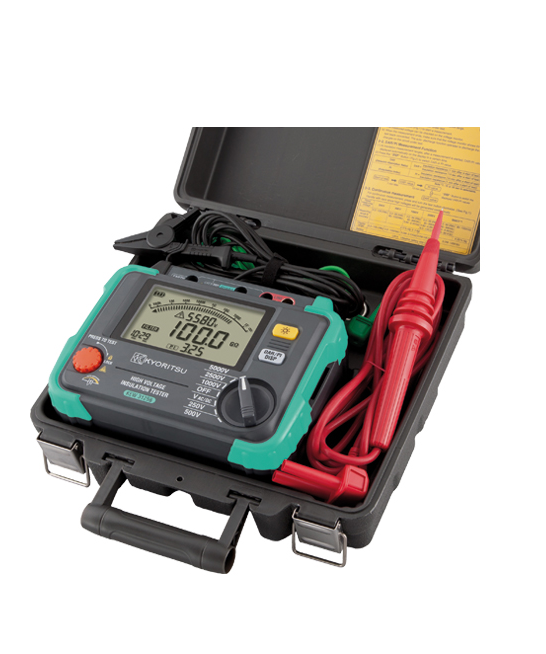

KYORITSU 3125B High Voltage Insulation Tester (250V~5000V, 100.0MΩ~1000GΩ)

Insulation resistance

Test voltage: 250V/ 500V/ 1000V/ 2500V/ 5000V

Measuring range: 100.0MΩ/1000MΩ/2.00GΩ/100.0GΩ/1000GΩ

Accuracy: ±5%rdg |±3dgt, ±20%rdg (100GΩ or more)

Short circuit current: 1.5mA

Voltage measurement

Measuring range

AC: 30 - 600V (50/60Hz)

DC: ±30 - ±600V

Accuracy: ±2%rdg±3dgt

General

Applicable standards: IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-031, IEC 61326-1, 2-2

Power source: DC12V : LR14/R14 × 8pcs

Dimension:

177 (L) × 226 (W) × 100 (D) mm

300 (L) × 315 (W) × 125 (D) mm (Carring case [Hard])

Weight:

1.9kg approx. (including batteries)

4kg approx. (including accessories)

Accessories

7165A (Line probe)

7264 (Earth cord)

7265 (Guard cord)

8019 (Hook type prod)

9204 (Carring case [Hard])

LR14 (Alkaline battery size C) × 8

Instruction manual

Optional accessories

7168A (Line probe with alligator clip)

7253 (Longer line probe with alligator clip)

8302 (Adaptor for recorder)
