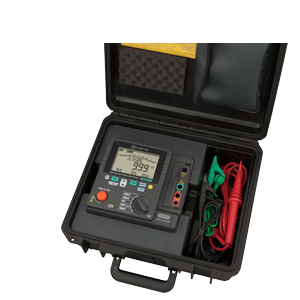

KYORITSU 3127 High Voltage Insulation Tester (9.99TΩ/ 5000V)

Test voltage:250V,500V, 1000V, 2500V, 5000V
Range: 0.0 - 99.9GΩ
Voltage measurement AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V
Current measurement:0.00nA - 5.50mA
Capacitance measurement:5.0nF - 50.0µF
Power source: Rechargeable Battery (Lead-acid Battery) 12V (*3)
Charging power: DC 15VA MAX
Communication Interface: Bluetooth: Ver2.1 + EDR Class2, USB: Ver1.1
Dimension: 208 (L) × 225 (W) × 130 (D) mm
380 (L) × 430 (W) × 154 (D) mm (Hard case)
Weight:3127: 4kg Approx. (including battery),
Total: 8kg Approx. (including Accessories)
Accessories: 7165A (Line probe), 7224A (Earth cord), 7225A (Guard cord),8019 (Hook type prod), 8254 (Straight type prod),8327EU (Power adaptor 15V/1A), 9171 (Hard case),
Instruction manual, Calibration Certificate
