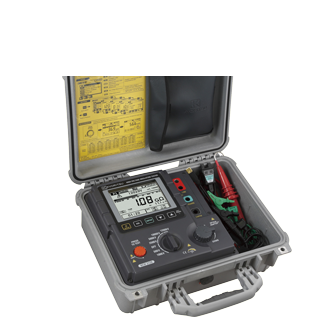

KYORITSU 3128 High Voltage Insulation Tester (12kV/35TΩ)

1)Measurement ofinsulation resistance

Testvoltage:500V/1000V/2500V/5000V10000V/12000V

Resolutionresistance measurement:500GΩ/1TΩ/2.5TΩ/35TΩ

Accuracy:± 5%rdg| ±and± 20%rdg3dgtdepending onresolution

Shortcircuitcurrent:5mA

2)the output voltage

Power voltage:500V/1000V/2500V/5000V10000V/12000V

Accuracy:0 ~+20%

Solutionschosen:

50 ~600V(step5V),

610~1200V(10Vstep),

1225~3000V(25Vstep)

3050~6000V(50Vstep)

6100~10000v(step100V)

12000V10100~(100 Vstep)

3)Measure the voltage

Power voltage:DCV:±30 ~±600V,

ACV:30 ~600V(50/60Hz)

Accuracy:± 2% rdg

4)Measure theflow: 0 to2.4mA

5)Measure thecapacitor

Supposemeasurements:5nF~50uF

Accuracy:± 5%rdg

Power:12Vbattery

Size:330 (L)×410 (W)×180 (D)mm

Accessories:

+7170(Maincord),

+7224A(Earthcord),

+7225A(Guardcord),

+7226A(lineprobe),

+7227A(Lineprobewithalligatorclips),

+8029(Extensionprod)

+8212-USB-W
