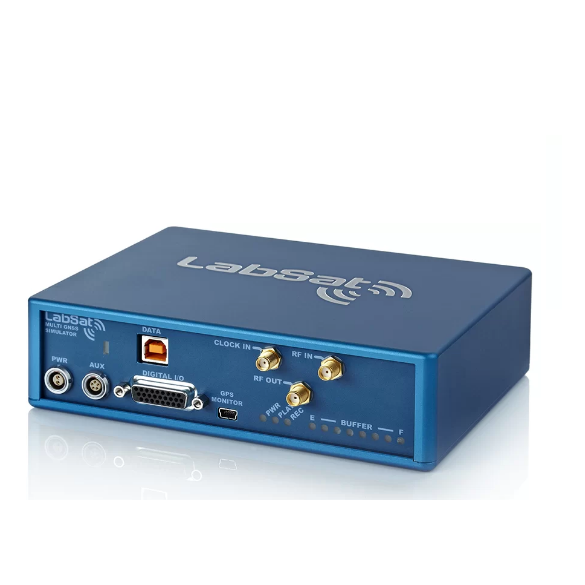

LABSAT Labsat RT+ GNSS Constellation Simulator

Constellations: GPS L1, GLONASS L1, BeiDou B1, Galileo E1

Output Signal Level: Fixed -83dBm

RF Channels: 2

RF Channel Centre Frequencies: Selectable

Sampling Frequency: 16.368 MHz

Number of Satellites Observed: Up to 24 (when simulating GPS and/or Galileo)

Quantisation: 1 or 2 bit (I & Q)

Data Format: I & Q

Media Storage Included: External hard disk only

Active Antenna Voltage Supply: 3.3 V

Reference Oscillator:

Frequency Stability ±2.5 ppm TCXO / ±0.05 ppm OCXO (optional)

Temperature Stability ±0.05 ppm TCXO / ±0.01 ppm OCXO (optional)

Operating Voltage: 8 V to 30 V DC
