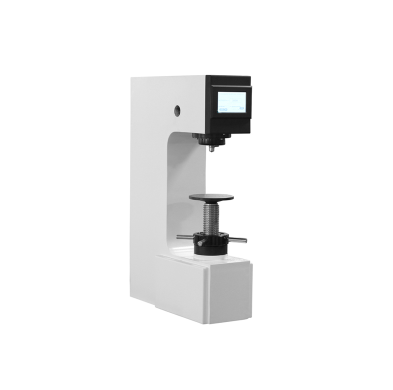

LABTT THB-3000S Brinell Hardness Tester

Test force: 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5kgf (1839N), 250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (7355N), 1000 Kgf (9807N), 1500 Kgf (14710N), 3000 Kgf (29420N)

Meet standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Accuracy of test force: 62.5 ~ 250Kgf≤1% 500 ~ 3000Kgf≤0.5%

Resolution of measuring device: The 0.01 mm

Hardness resolution: 0.1 HBW

Hardness test range: 3.18-653 HBW

Dwell time: 0 ~ 99 s

Magnification of the microscope: 20x

Maximum permissible specimen height: 230mm

The minimum reading of micro hub wheel: 0.01 mm

Distance between head and wall: 155mm

size: 550 * 210 * 800 mm

Weight: 110kg

Power: AC220 + 5%, 50 ~ 60 hz
