Gain: 4.5 dBi, 4.4 dBi, 3.7 dBi, 4 dBi, 4.2 dBi, 4.6 dBi, 5.6 dBi, 5.4 dBi, 4.1 dBi, 5 dBi, 5.7 dBi, 6.8 dBi, 7.3 dBi
VSWR: 1.9, 1.7, 1.7, 1.5, 1.3, 1.5, 1.3, 1.4, 1.4, 1.4, 1.5, 1.4, 1.7
Style: Panel
Length: 7.6 mm
Diameter: 270 mm
Impedance: 50 Ohms
Cable Type: 30 cm Coax
Application: In-Building Systems, FirstNet/Public Safety
Cable Length: 300 mm
Polarization: Horizontal
Power Rating: 50 W
Mounting Style: Ceiling Mount
Number of Bands: 13 Band
Center Frequency: 365 MHz, 3450 MHz, 649 MHz, 752 MHz, 850 MHz, 1450 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2500 MHz, 3750 MHz, 5412 MHz
Mechanical Style: Module
Maximum Frequency: 5.925 GHz
Minimum Frequency: 350 MHz
Termination Style: Connector
Protocol - Sub GHz: Radio, UHF, IoT, ISM

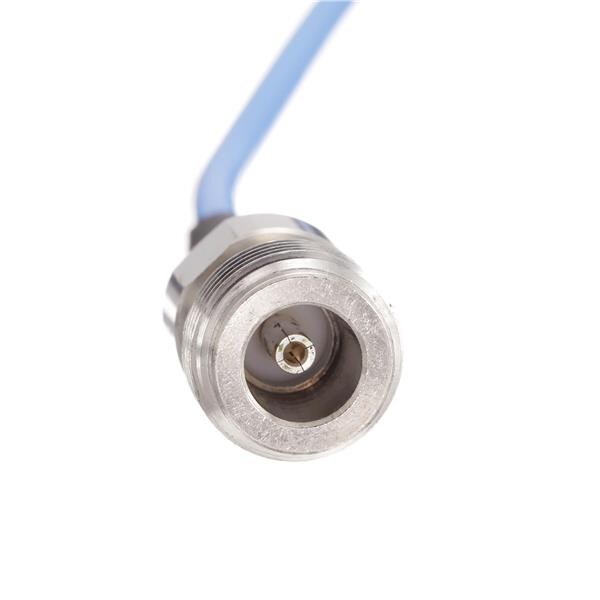

Antenna Connector Type: N Female
Protocol - WiFi - 802.11: WiFi, WiMAX
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), CBRS, WCS, UMTS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
