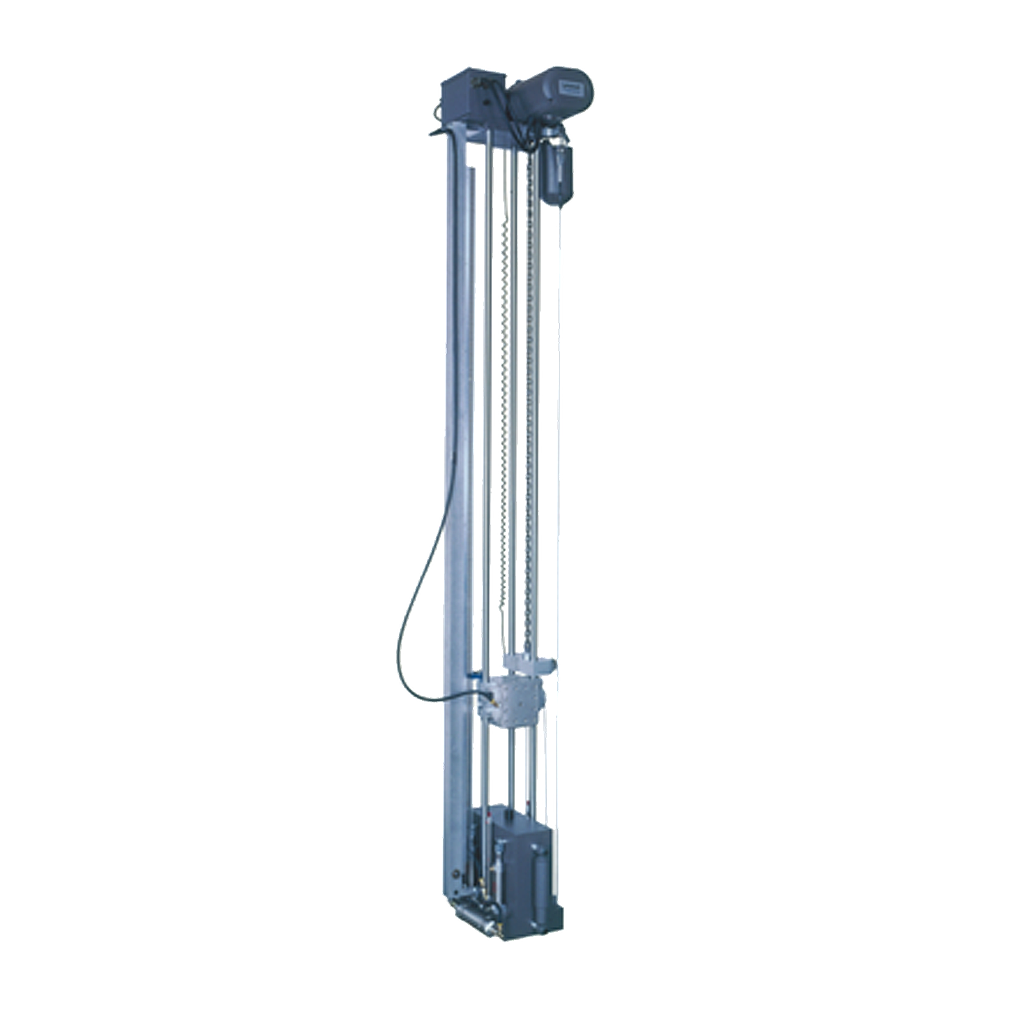

Lansmont 15D Shock test system (2000g)

PERFORMANCE SPECIFICATIONS:

TABLE DIMENSIONS:

Front Face:  6.0 x 6.0 in. (15.2 x 15.2 cm)

Top Face:  6.0 x 6.0 in. (15.2 x 15.2 cm)

TEST CAPABILITIES:

Max. Acceleration : 2000g

Min. Pulse Duration:  0.25 msec (half sine)

Max. Velocity Change: 24 – 32 ft./sec (7.3 – 9.7 m/sec)

Pulse Waveforms : Half Sine

MAXIMUM PAYLOAD : 40 lbs. (18 kg)

MACHINE SPECIFICATIONS:

MACHINE ENVELOPE DIMENSIONS:

Height : 96 – 120 in. (244 – 305 cm)

Side to Side : 21 in. (53 cm)

Front to Back : 21 in. (53 cm)

POWER REQUIREMENTS:

Machine : 200 – 240 VAC/3Φ/50 – 60 Hz: 4 amp min.; 380 – 480 VAC/3Φ/50 – 60 Hz: 2 amp min.

Controller:  100 – 120 VAC/1Φ/50 – 60 Hz: 1 amp min.; 200 – 240 VAC/1Φ/50 – 60 Hz: 1 amp min.

PNEUMATIC REQUIREMENTS:

Plant Air : 90 psi (6.2 bar)
