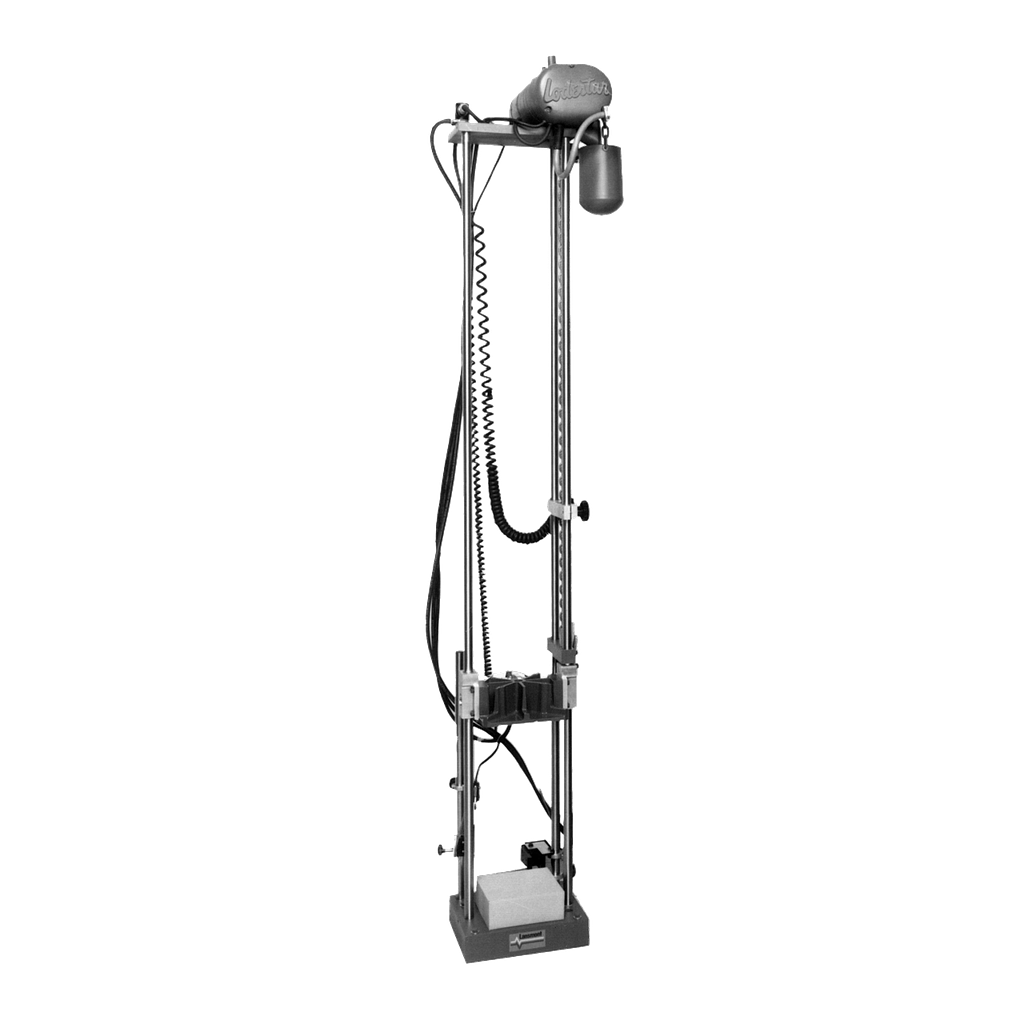

Lansmont 23C Cushion shock test system

Static Loading Range:

Heavyweight Platen and Ballast Kit

0.2 – 5.0 psi (0.014 – 0.35 kg/cm2)

Lightweight Platen and Ballast Kit (optional)

0.03 – 0.15 psi (0.0021 – 0.0105 kg/cm2)

Impact Velocity Range [Equivalent Drop Height]

Min. Impact Velocity 28 in./sec. (71 cm/sec.)

Min. Equivalent Drop Height 1 in. (2.5 cm)

Max. Impact Velocity 216 in./sec. (549 cm/sec.)

Max. Equivalent Drop Height 60 in. (152 cm)

PHYSICAL

Platen Sizes

Heavyweight Platen 9.06 x 9.06 in. (23 x 23 cm)

Lightweight Platen (optional) 8.5 x 8.5 in. (21.6 x 21.6 cm)

Platen Weights

Heavyweight Platen 12.8 lbs. (5.8 kg)

Lightweight Platen (optional) 1.92 lbs. (0.9 kg)

Machine Height 96 in. (244 cm)

Envelope Dimensions 18 x 18 in. (46 x 46 cm)

POWER REQUIREMENTS

Voltage 100 – 230 VAC

Frequency 50, 60 Hz.

Phase Single Phase

PNEUMATIC REQUIREMENTS

Plant Air 80 – 120 psi (5.6 - 8.4 kg/cm2)

Datasheet
