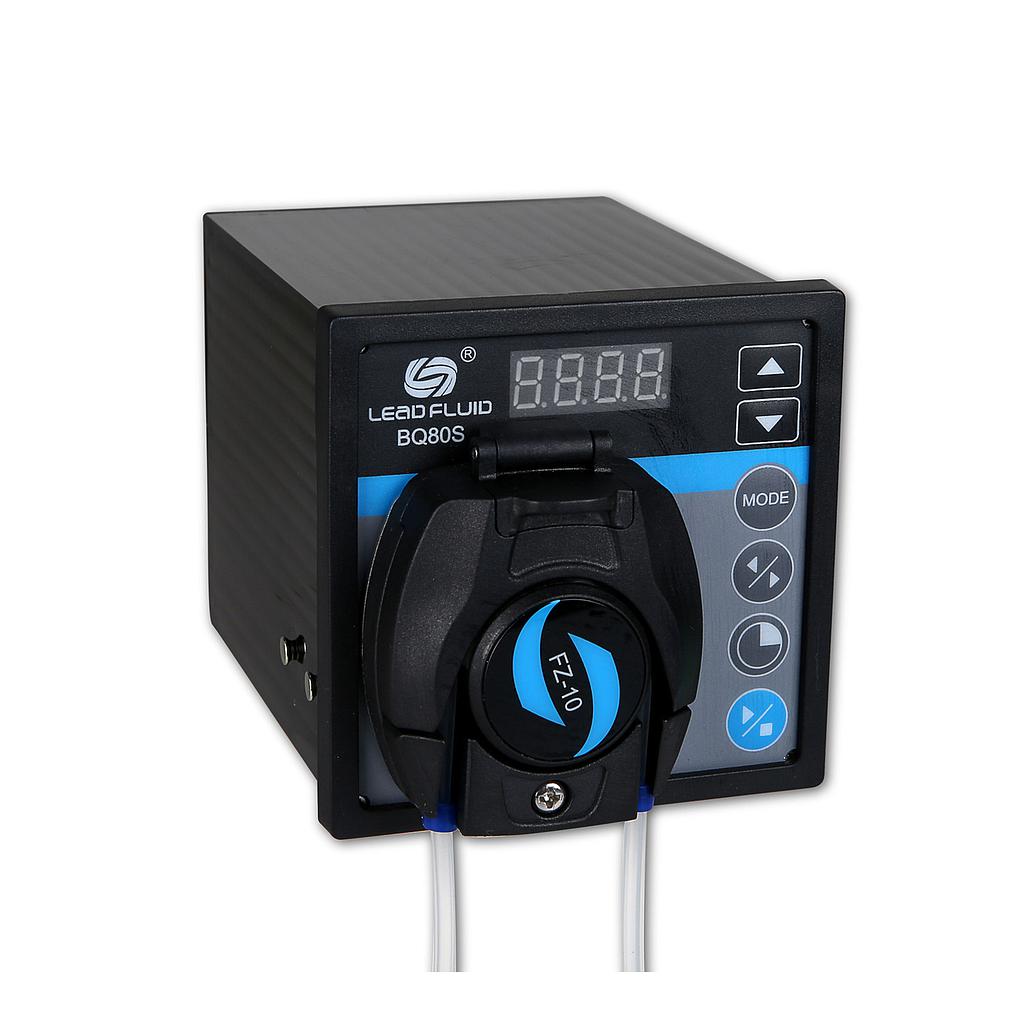

Leadfluid BQ80S Microflow Variable-Speed Peristaltic Pump (0.05-77mL/min, 1 CH)

Name: Leadfluid BQ80S Microflow Variable-Speed Peristaltic Pump (0.05-77mL/min, 1 CH)
Brand: Leadfluid
Availability: OutOfStock

ModelBQ80S

P/NBQ80S(DW10-1)

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications

Flow range: 0.0004-77 mL/min

Speed range: 0.1-80 rpm

Speed accuracy: 0.5%

Speed resolution: 0.1 rpm

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 10W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

External communication interface: MODBUS RS485

Ambient temperature: 0-40 °C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 135mm x 96mm x 96mm (4.4 x 3.8 x 3.8 inch)

Weight: 0.8 kg (1.8 lbs)

Drive type	Pump head	ch	Tubing size(mm)	Flow rate(mL/min) per channel
BQ80S (Pump heads notinter changeable)	FZ10	1	WALL:0.8-1 ID:≤3.17	0.05-40
	DW10-1	1	WALL:0.8-1 ID: ≤3.17	0.005-32
	DW10-2	2	WALL:0.8-1 ID: ≤2.54	0.005-19
	DW10-3	3	WALL:0.85-1 ID: ≤3.17	0.005-32
	DW15-1	1	13#14#16#19#25#	0.004-64
	KD10-1	1	WALL:0.85-1 ID: ≤3.17	0.004-32
	KD10-2	2	WALL:0.85-1 ID: ≤3.17	0.004-32
	KD15-1	1	13#14#16#19#25#	0.004-77
