Flow range: 0.16-720 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.1 rpm
Flow accuracy: 0.2%
Power supply: AC 10-240V, 50Hz/60Hz
Power consumption: < 60W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: MODBUS RS485
Operating condition: 0~40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 278mm × 150mm × 237mm (10.94 inch x 5.91 inch x 9.33 inch)
Weight: 4.7 kg (10.36 lbs)
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |

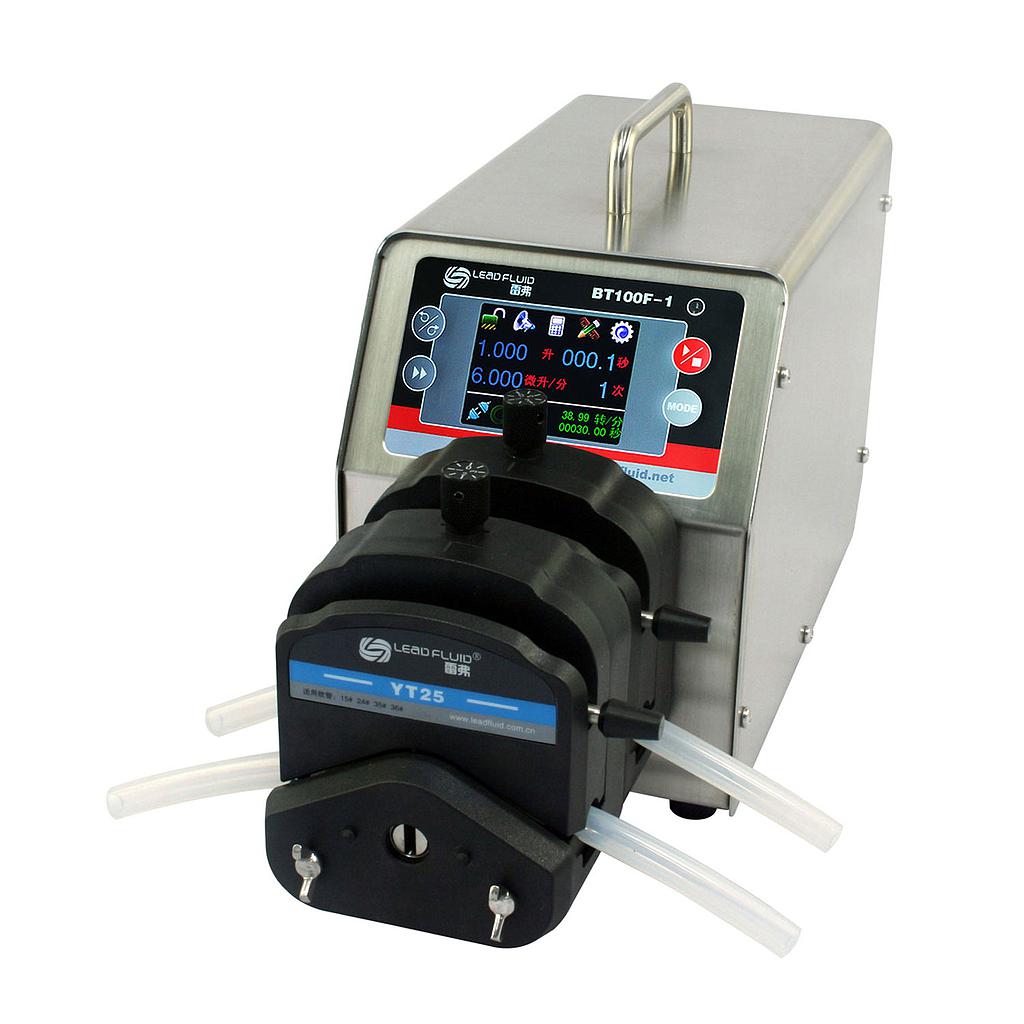

| BT100F-1 | DG6-8 (6rollers) | 8 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 |
| DG10-8 (10rollers) | 8 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-12 (6rollers) | 12 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-12 (10rollers) | 12 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-16 (6rollers) | 16 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-16 (10rollers) | 16 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-24 (6rollers) | 24 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-24 (10rollers) | 24 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DT10-88 | 8 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-420 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.006-420 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16-420 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-720 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.16-720 | |
| DT15-14 | 1 | 16# 19# 25# 17# | 0.07-560 | |
| DT15-24 | 2 | 16# 19# 25# 17# | 0.07-560 | |
| DT15-44 | 4 | 16# 19# 25# | 0.07-330 | |
| KZ25 | 1 | 15# 24# 35# 36# | 0.25-1200 | |
| DMD25 | 1 | 15# 24# 35# 36# | 0.3-1700 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
