Specifications
Flow range: 0.006-4000 mL/min
Speed range: 0.1-350 rpm
Speed resolution: 0.1 rpm
Flow accuracy: 0.5%
Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)
Power consumption: <100W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: 0-40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)
Weight: 6.2kg (13.9 lbs)
| Drive type | Suitable pump heads | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |

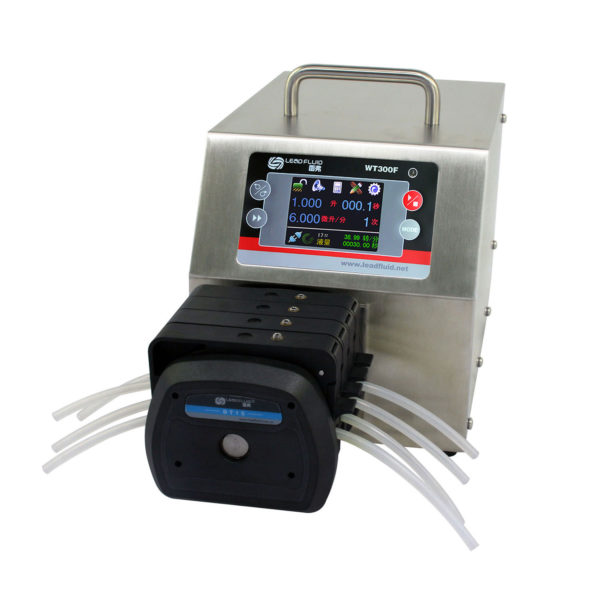

| WT300F | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-990 |
| YZ25 | 1 | 15# 24# | 0.16-990 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.006-990 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16-990 | |
| 4 x YZ15 | 4 | 13# 14# 16# 19# 25# 17# | 0.006-990 | |
| 4 x YZ25 | 4 | 15# 24# | 0.16-990 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1300 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-1600 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1300 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.16-1600 | |
| 4 x YT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1300 | |
| 4 x YT25 | 4 | 15# 24# 35# 36# | 0.16-1600 | |
| DT15-14 | 1 | 16# 19# 25# 17# | 0.05-930 | |
| DT15-24 | 2 | 16# 19# 25# 17# | 0.05-930 | |
| DT15-44 | 4 | 16# 19# 25# | 0.05-610 | |
| KZ25 | 1 | 15# 24# 35# 36# | 2.5-3500 | |
| 2 x KZ25 | 2 | 15# 24# 35# 36# | 2.5-3500 | |
| DMD25 | 1 | 15# 24# 35# 36# | 3-4000 |
