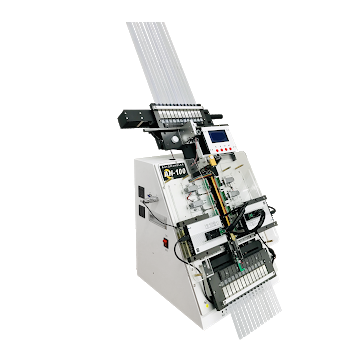

Feeder: 12 tubes
Automatedly unload the IC based on the programming result, one tube reserved for failed devices
Configurable IC qty. for each tube based on its package
Dual programming verification before procedure being judged as failure
Result logging for convenient production management
Optional 2~4 LEAPER-56 Universal Programmer
Easy to use without needing compressed air, programming 2-4 devices simultaneously to maximize the throughput
Separated Operation controller and UI for fast responding.
Power: 110V/220V 50Hz
Consumption: 0.18kW
Display: LCD
Operation Temp.: +10°C ~ +40°C
Operation Humidity: 10%~95% without frost
Dimension: 480mm(L) * 420mm(W) * 680mm(H)
Weight: 26KG without programmers
* Stand Accessories
Main Unit x1
LEAPER-56 x2-4
AC Cord x1
2A/1B Y-Shape USB Cablex2
1A/1B USB Cable x1
7 Port USB Hub x1
5V 2.0A DC Adaptor x1
USB Drive(SW&Manual) x1
*LEAPER-56 Specification
Logic signal level: 1.5V~6.0V,10mV
IOL, IOH current: 10mA
Logic signal frequency: 75MHz (3-5V), 60MHz (2.5V), 45MHz (1.8V), 25MHz (1.5V)
Signal skew: <±2.5nS (3-5V)
Clock frequency: 0Hz ~ 75MHz
VDD, VIO level: 1.5V~6.5V,10mV
IDD, IIO frequency: 400mA
VPP, VHH level: 1.5V~15.5V,20mV
IPP, IHH frequency: 150mA
Pin drivers: 48 Pin Uuiversal Pin Driver (Zero Inser ion Force)
DUT socket: DIP 48 ZIF
Dimension: 136(L) x 90(W) x 20(H) mm, Socket is not induded
Weight: 282g
*System requirement:
OS: Windows7 / Vista / XP (32bit & 64bit)
CPU: Pentium 4
RAM: 1GB
Storage: SW 500MB UP/Buffer; 1 GB UP (Depends on IC size)
Interface: USB 2.0 high speed
USB Power: Dual USB port, > 600 mA
Optional: sop150mil, ssop150mil, sop210mil, ssop210mil, sop300mil, dip300mil, msop50mil, tssop173mil
