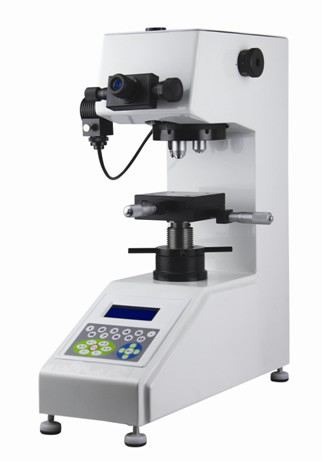

Leeb LHV-1000D Digital Micro Vickers Hardness tester (8~2900HV)

Test Force: 10 gf (0.098 N), 25 gf (0.245 N), 50 gf (0.49 N), 100 gf (0.98 N), 200 gf (1.96 N), 300 gf (2.94 N), 500 gf (4.9 N), 1000 gf (9.8 N)

Minimum Measuring Unit: 0.03125 μm

Data Output: Digital LCD display

Maximum Specimen Height: 90 mm

Distance from Indenter to Outer Wall: 120 mm

X-Y Testing Table: Dimensions: 100 × 100 mm; Maximum Travel: 25 × 25 mm

Conversion Scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Measuring Range: 8–2900 HV

Test Force Application Method: Automatic (Loading, Dwell, Unloading)

Test Microscope Magnification: 400X (Measuring), 100X (Observation)

Dwell Time: 5–60 s (Adjustable)

Power Supply: AC 220 V ±5%, 50–60 Hz

Overall Dimensions: 405 × 290 × 480 mm

Net Weight: Approximately 35 kg
