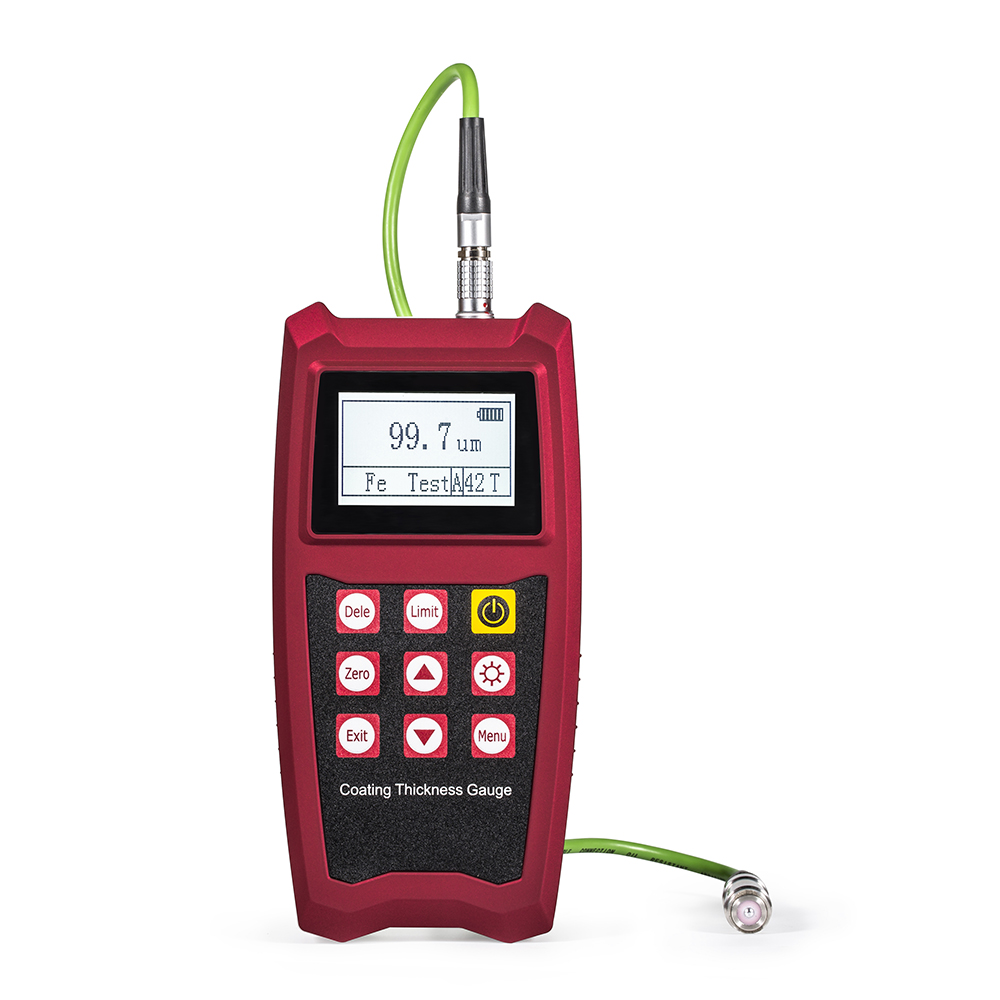

Measuring principle: Magnetic induction (Fe ) & Eddy current ( NFe)
Measuring range (µm): 0~1250μm
Probe: Changeable
Shell: Plastic
Accuracy: ±(2%H+1) μm; H refers to the thickness of testing piece
Minimum resolution (µm): 0.1μm
Min curvature of the min area (mm): Convex1.5 Concave9
Diameter of the min area (mm): Φ7
Critical thickness of substrate (mm): 0.5
Memory: 1560
Dimensions: 163*78*33 mm
Power supply: 2*AA Alkaline battery
Standard Configuration: Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe), software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, AA battery*2, Packing list, Warranty card
Optional Accessories: Probes,Specimens
