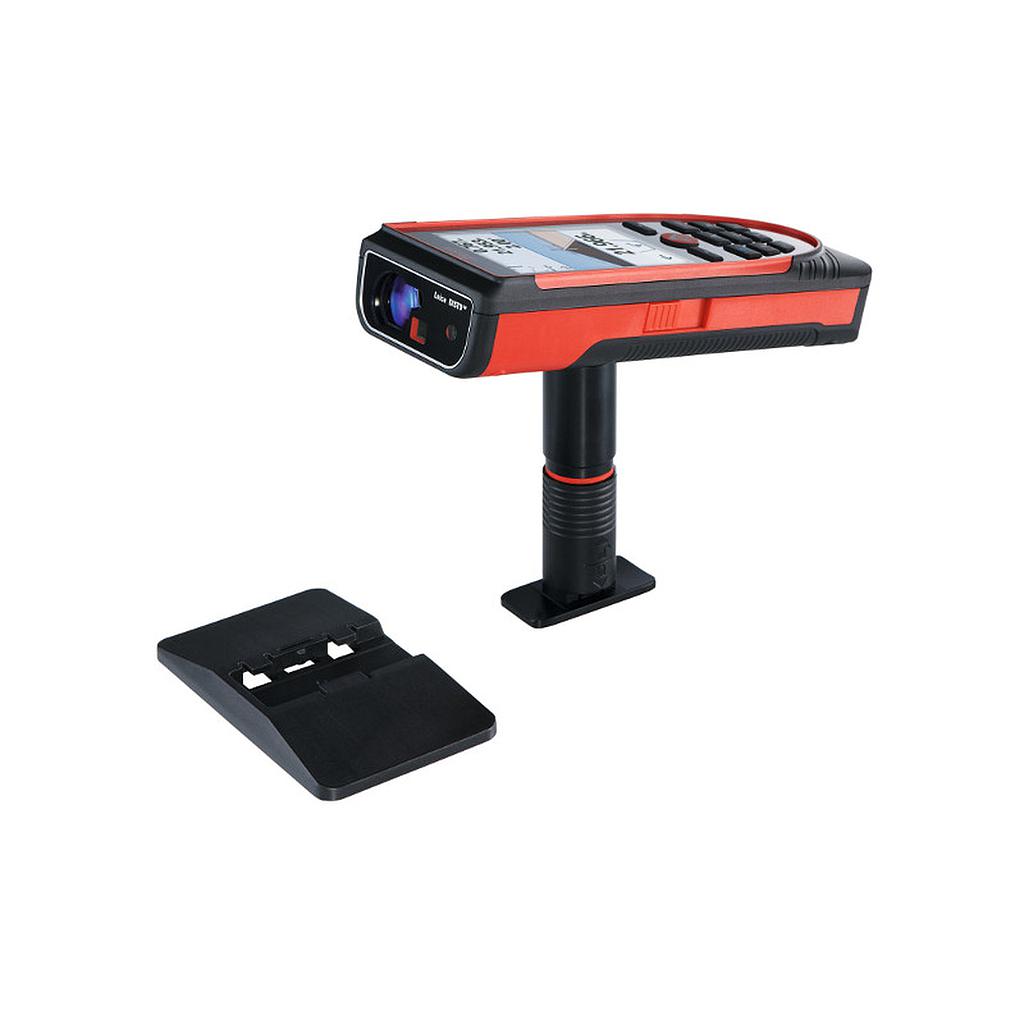

Leica DISTOTM S910 Laser Distancemeter

Name: Leica DISTOTM S910 Laser Distancemeter
Brand: LEICA
Availability: OutOfStock

ModelDISTO S910

OriginAustria

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

ISO 16331-1 certified measuring accuracy (favorable conditions): 1.0mm

ISO 16331-1 certified measuring accuracy (unfavorable conditions): 2.0mm

ISO 16331-1 certified range (favorable conditions): 0.05m - 300m

ISO 16331-1 certified range (unfavorable conditions): 0.05m - 150m

Smart Base vertical range: -40° to 80°

Smart Base vertical sensor tolerance: up to +/- 0.1°

Smart Base horizontal range: 360°

Smart Base horizontal tolerance: up to +/- 0.1°

Tolerance P2P function  at distances (combination of sensors and distance measuring): approx. : +/- 2 mm / 2 m+/- 5 mm / 5 m +/- 10 mm /10 m

Measuring units: 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32

X-Range Technology: Yes

Pointfinder with 4x zoom: Yes

Overview camera: Yes

File format: .jpg / .dxf

Memory: Last 50 displays

Windows Software: DISTO Transfer with AutoCAD® plugin

Free App: iOS / Android

Data interface: Bluetooth® V4.0 Smart / WLAN / USB

Measurements per set of batteries: ~ 4000

Storage Temp. Range: -25 to 60 °C

Operating Temp. Range: -10 to 50 °C

Charging Temp. Range: -10 to 40 °C

Batteries: Li-ion rechargeable

Tripod thread: -20

Protection class: IP 54 - splash water/ dust proof

Dimensions: 61 x 32 x 164 mm

Weight with batteries: 8.5 oz

EAN/UPC: 7640110695746, 7640110695753 (North America)

Article No.: 805080 | 808183 (US & CAN)

Technical specifications:
Typical measuring accuracy	± 1 mm
Range	0.05 up to 300 m
X-Range Power Technology	•
Measuring units	m, ft, in
Distance in m Ø of the laser dot in mm	10, 50, 100 m 6, 30, 60 mm
Smart Base measuring range Horizontal Vertical	360° -40° to 80°
Distance in m Typical tolerance of the P2P function	2, 5, 10 m 2, 5, 10 mm
Levelling range	± 5°
Pointfinder with 4x zoom	•
Overview camera	•
File format	jpg, dxf
Memory for CAD files	20 files, each with 30 points
Free software for Windows	•
Free App	iOS / Android
Data interface*	Bluetooth® Smart, WLAN
Measurements per set of batteries	up to 4000**
Batteries	Li-ion rechargeable
Charging time	4h
Protection class	IP 54
Dimensions	164x61x32 mm
Weight with batteries	290 g

*) System requirements and other details can be found at http://www.disto.com/
**) Reduced in Bluetooth® or WLAN mode

Functions:
Distance measurement	•
Minimum / maximum measurement	•
Subtraction / addition	•
Area / volume measurement	•
Painterfunction	•
Tilt measurement	•
Smart Horizontal Mode	•
Sloped object measurement	•
Height tracking	•
Height profile measurements	•
Pointfinder with 4x zoom	•
Camera function	•
Measure with the picture	•
Personalized favourites	•
Touch screen	•
Compass	•
Point-to-Point measurements	•
Smart angle measurement	•
Smart area measurement	•
DXF data capture	•
WLAN data transmission	•
Bluetooth® SMART	•

Supported Mobile devices:	Wireless connectivity	Data transfer
iPhone 4S, iPhone 5, iPhone 6, iPhone 6 plus	Bluetooth® 4.0	with App or keypad mode*
iPad mini	Bluetooth® 4.0	with App or keypad mode*
iPad 3 and newer versions	Bluetooth® 4.0	with App or keypad mode*
iPod touch (5th Generation)	Bluetooth® 4.0	with App or keypad mode*
Smartphones and tablets with Android 4.3 or higher	Bluetooth® 4.0	with App
Tablets and Notebooks with Windows 8.1 or higher	Bluetooth® 4.0	DISTO™ transfer keypad mode*
Tablets and Notebooks with Windows 7 or higher	WLAN	DISTO™ transfer WLAN
