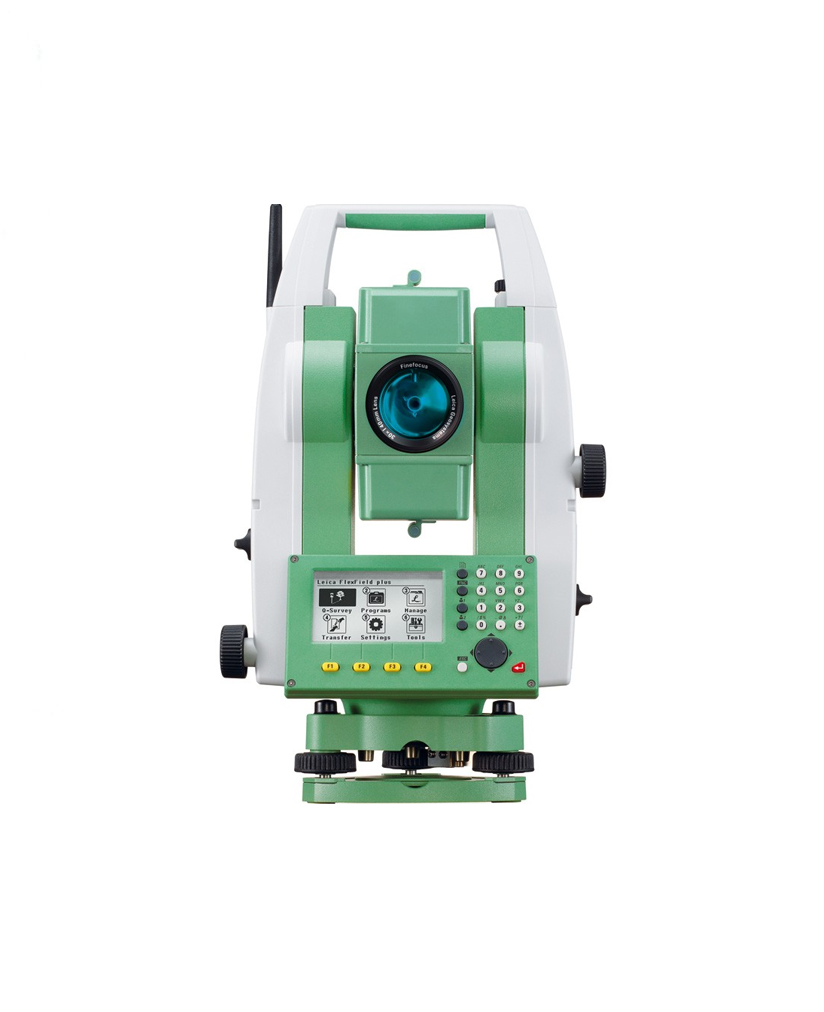

LEICA TS06 Plus Total Station

Telescope

Magnification: 30x

Resolution: 3″

Field of view: 1°30′

Minimum focusing distance: 1.7 m

Angle Measurement

Accuracy: 1″ / 2″ / 3″ / 5″ / 7″ (precise, continuous, centered measurement)

Resolution: 0.1″

Tilt compensation: 4-axis compensator

Compensator setting accuracy: 0.5″ / 0.5″ / 1″ / 1.5″ / 2″

Distance Measurement with Prism

Range:

Leica GPR1 prism: 3500 m

Reflective sheet (reflector): 500 – 1000 m

Long-range mode: 10,000 m

Accuracy:

Fine measurement: ±(1.5 mm + 2.0 ppm)

Fast measurement: ±(2.0 mm + 2.0 ppm)

Tracking: ±(3.0 mm + 2.0 ppm)

Measurement time:

Typically 1 second

Fine mode: 4 seconds

Reflectorless Distance Measurement

Range: 500 – 1000 m

Accuracy: ±(2 mm + 2 ppm)

Laser Spot Size

At 30 m: 7 × 10 mm

At 50 m: 8 × 20 mm

Display, Keyboard & System

Numeric keypad

Monochrome display: 160 × 288 pixels

Operating system: Windows CE

Battery

Type: Rechargeable Lithium-Ion battery (charging time: 2.3 hours)

Operating time: Approx. 30 hours

General Specifications – TS06 Plus

Laser Plummet:

Type: Laser

Accuracy: 1.5 mm at 1.5 m instrument height

Weight: 5.1 kg

Internal memory: 100,000 points or 60,000 measurements

Operating temperature: –20°C to +50°C

Water/Dust protection: IP55

Humidity resistance: 95% (non-condensing)
