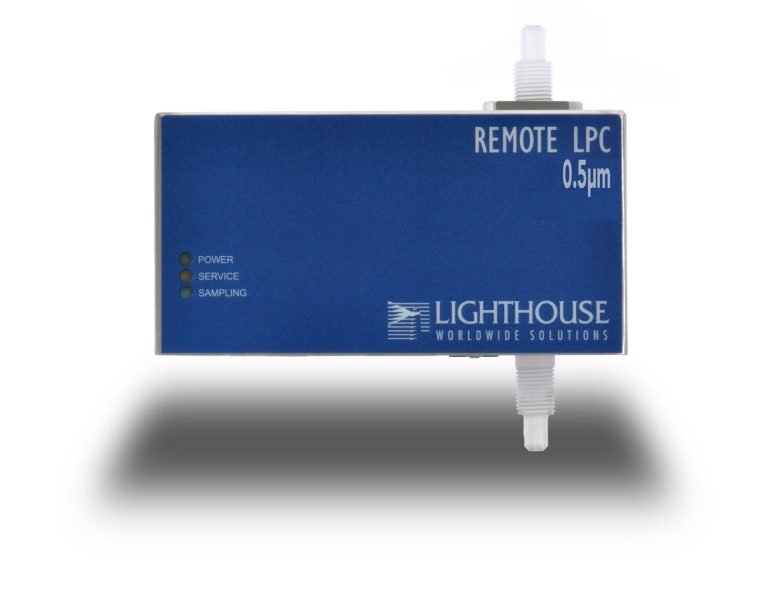

Lighthouse Remote LPC Liquid particle counter (0.5 - 5.0 μm)

Minimum Size Detection: 0.5 μm

Standard 2 Channels (4-20mA): 0.5, 1.0 μm

Optional 2 Channel (4-20mA): 0.5, 2.0; 0.5, 5.0 μm

Standard 4 Channels (Modbus): 0.5, 0.7, 1.0, 2.0 μm

Optional 4 Channels (Modbus): 0.5, 1.0, 2.0, 5.0 μm

Flow Rate: 100 mL / minute

Coincidence error: 4,000 counts/ml @ 5%

Sample Pressure: 150 PSI

Sample Temperature: 32 - 140°F (0 - 60°C)

Sample Inlet/Outlet Connection: 1/4” FlaretekTM

Laser Source: Laser Diode

Calibration: NIST Traceable

Wetted Surface Materials: Quartz, PTFE, PFA

Data Storage: Rotating buffer 2,000 records (modbus models)

External Alarm Output: Normal open dry contact rated 0-60v AC/DC 1 Amp

Communication Modes: RS232/485 via RJ45 to PC, RS485 modbus, ASCII, Modbus or MR protocol

LED Indicators: Power, Sampling (4-20mA model); Power, Service, Sampling (485 modbus model)

Power: 24 VDC

Dimensions: 5.7”(l) x 5.2”(w) x 3.0”(h) [14.47 x 13.2 x 7.6 cm]

Weight: 3.5 lbs (1.58 kg).

Includes: Power supply; tubing; flow cell cleaning, brush with Micro90 cleaning solution.
