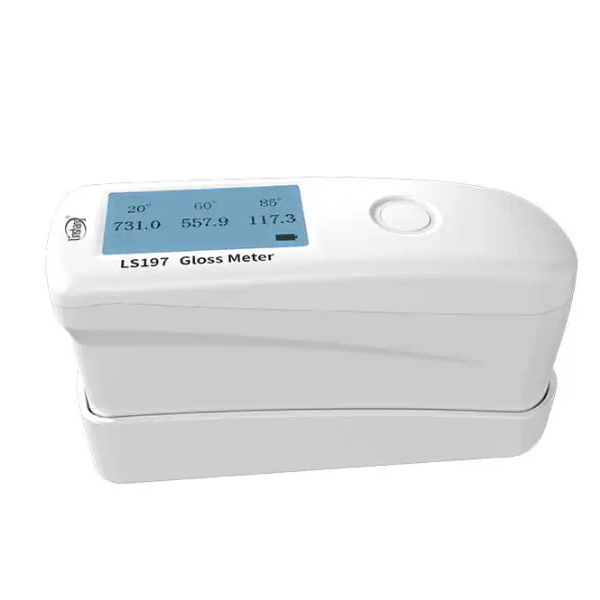

Linshang LS197 Gloss Meter (20°, 60°, 85°)

Measuring Angle: 20°, 60°, 85°

Measuring Light spot:

20°: 9mm*9mm

60°: 9mm*15mm

85°: 5mm*38mm

Minimum Test Material Size: 57mm*10mm

Measuring Range:

20°: 0-2000GU

60°: 0-1000GU

85°: 0-160GU

Resolution: 0.1GU

Repeatability:

0-100GU:±0.2GU

100-2000GU:±0.2%

Indication Error:

0-100GU:±1.5GU

100-2000GU:±1.5%

Power Supply: rechargeable lithium3.7V@2000mAh

Display: 240×128 Dot Matrix

Language: Simplified Chinese, English

Charge Port: USB(Type-C)

Data Transmission: USB

Size: 140*48*75mm

Weight: About 300g

Working Temperature: 10~45℃，0~85%RH（no condensation）

Storage Temperature: -10~60℃, 0~85%RH（no condensation）

User Manual
