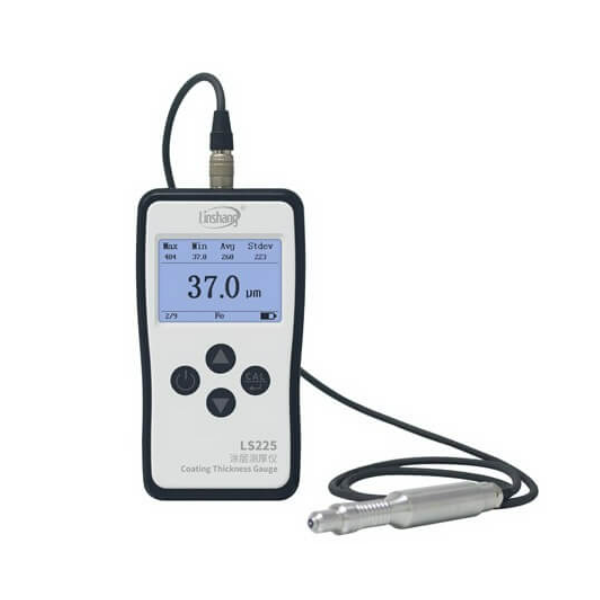

LSS225 plating thickness gauge host parameters
Display: 240×160 dot matrix LCD
Power supply: 4pcs of 1.5V AAA alkaline battery
Operation temperaturerange: 0℃-50℃
Storage temperaturerange: -20℃-60℃
Host size: 148*76*26 mm (L*W*H)
Weight (include battery): 194g
F500 probe parameters
Measuring range: 0.0-500μm
Resolution:
0.1μm: 0μm - 99.9μm
1μm: 100μm - 500μm
Repeatability: ≤ ± (0.8%H+0.1μm)Test with fixture, H is the standard value
Accuracy: ≤±(2%H+0.3μm) after calibration of 1-5 points, H is the standard value
Unit: μm / mil
Measuring interval: 1.5s
Minimum measuring area: Ø = 7mm
Minimum curvature: Convex:1.5mm / Concave:10mm
Minimum substrate thickness: 0.1mm
Probe size: 110*15 mm (Without connecting cable)
Probe weight: 81g
