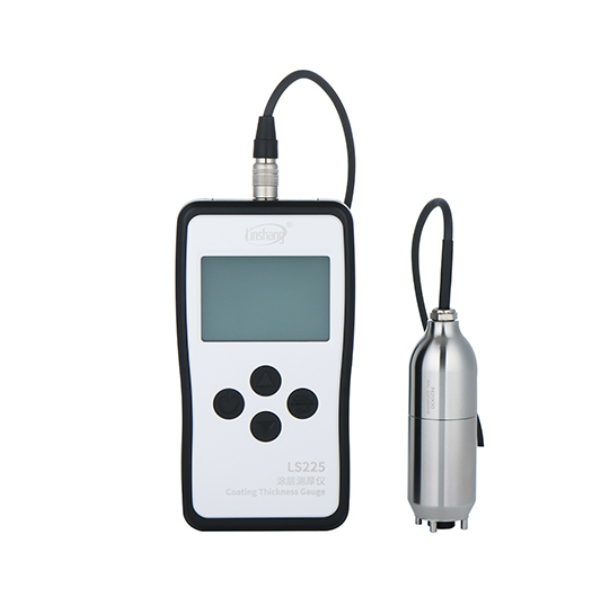

Linshang LS225+N2000 Plating Thickness Gauge (0.0-2000μm)

LSS225 plating thickness gauge host parameters

Display: 240×160 dot matrix LCD

Power supply: 4pcs of 1.5V AAA alkaline battery

Operation temperature range: 0℃-50℃

Storage temperature range: -20℃-60℃

Host size: 148*76*26 mm (L*W*H)

Weight (include battery): 194g

N2000 probe parameters

Measuring range: 0.0-2000μm

Resolution:

0.1μm: 0μm - 99.9μm

1μm: 100μm - 999μm

0.01mm: 1.00mm – 2.00mm

Repeatability: ≤ ± (1%H+0.2μm)Test with fixture, H is the standard value

Accuracy: ≤±(2%H+0.3μm) after calibration of 5 points, H is the standard value

Unit: μm / mil

Measuring interval: 0.8s

Minimum measuring area: Ø = 7mm

Minimum curvature: Convex:1.5mm / Concave:10mm

Minimum substrate thickness: 0.3mm

Probe size: 95.5*30 mm (Without connecting cable)

Probe weight: 304g
