Gain: - 3.1 dBi
VSWR: 1.6, 1.7, 1.8, 3, 3.6, 4.1, 7

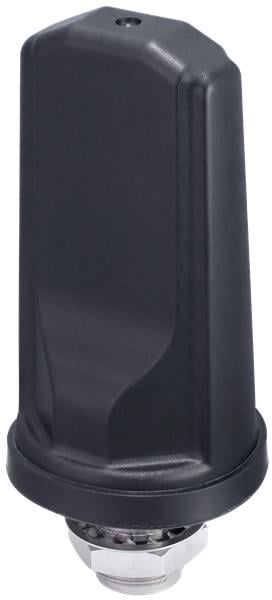

Style: Sharkfin
Length: 70.8 mm
Diameter: 40.2 mm
IP Rating: IP67
Impedance: 50 Ohms
Wavelength: 1/2 Wave
Application: CBRS, Emerging 5G C-Band and Emerging 5G 2.5 GHz EBS Applications, IoT Devices, LTE-M, NB-IoT, 4.9 GHz Public Safety, Worldwide 5G/4G/3G/2G
Polarization: Linear
Power Rating: 10 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Dipole
Number of Bands: 10 Band
Center Frequency: 656 MHz, 751 MHz, 876, MHz, 1955 MHz, 2350 Mhz, 2593 MHz, 3550 MHz, 3625 MHz, 3950 MHz, 4700 MHz
Mechanical Style: Module
Ground Plane Size: 300 mm x 300 mm
Maximum Frequency: 5 GHz
Minimum Frequency: 617 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT
Antenna Connector Type: N Jack (Female)
Protocol - WiFi - 802.11: LoRaWAN, Sigfox, WiFi, WLAN
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE), GSM
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
