Gain: 3.2 dBi, 6.8 dBi, 7 dBi
VSWR: 1.9, 3.7, 4

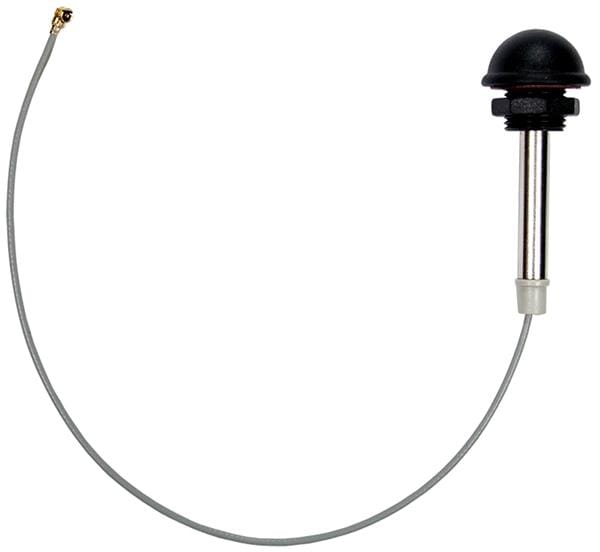

Style: Mini Dome
Length: 10 mm
Diameter: 19 mm
Bandwidth: 100 MHz, 150 MHz
Frequency: 2.4 GHz, 5 GHz
Impedance: 50 Ohms
Cable Type: 216 mm RF1.32
Wavelength: 1/2 Wave
Application: WiFi 4, WiFi 5, 802.11, Bluetooth, ZigBee, 802.15.4
Unit Weight: 10.047 g
Cable Length: 216 mm
Polarization: Linear
Power Rating: 5 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Dipole
Frequency Range: 2.4 GHz to 2.485 GHz, 5.15 GHz to 5.85 GHz, 5.925 GHz to 7.125 GHz
Number of Bands: 3 Band
Center Frequency: 2.4 GHz, 5 GHz, 6 GHz
Mechanical Style: Round
Ground Plane Size: 102 mm x 102 mm
Maximum Frequency: 7.125 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, U-NII
Antenna Connector Type: U.FL Plug
Protocol - WiFi - 802.11: 802.11 n/ax, WiFi 4, WiFi 5, WiFi 6
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
