Gain: 4.5 dBi, 7.2 dBi, 7.6 dBi
VSWR: 1.4, 1.7, 2

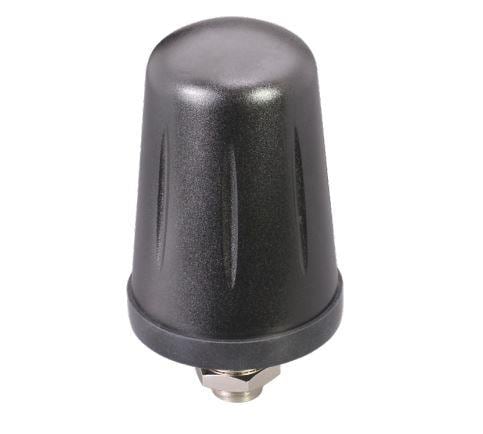

Style: Dome
Height: 80 mm
IP Rating: IP67
Impedance: 50 Ohms
Wavelength: 1/2 Wave
Application: 2.4 GHz ISM Applications - Bluetooth and ZigBee, IoT Devices, Sensing and Remote Monitoring, Smart Home Networking, U-NII Bands 1-8, WiFi/WLAN Coverage - 802.11 b/g, Wifi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6/6E (802.11ax)
Polarization: Linear
Power Rating: 20 W
Mounting Style: Panel Mount
Electrical Type: Dipole
Number of Bands: 3 Band
Center Frequency: 2.45 GHz, 5.5 GHz, 6.5 GHz
Maximum Frequency: 7.125 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: N Female
Protocol - WiFi - 802.11: 802.11, WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
