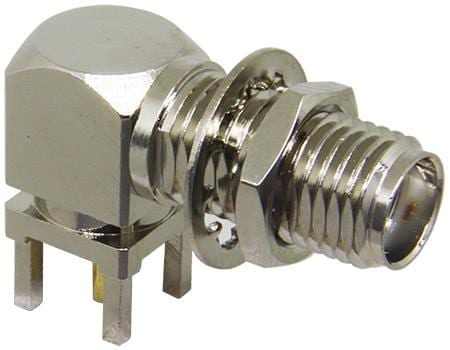

Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMA
Body Style: Right Angle
Body Finish: Nickel
Orientation: Right Angle
Unit Weight: 5.716 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.06 dB max
Mounting Style: PCB Mount
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
