Lisun EMI-9KC EMI Receiver System (9kHz ~ 1GHz, 20dBμV ~ 140dBμV)

• Detection frequency range: 9kHz~30MHz (EMI-9KA) , 9kHz~300MHz (EMI-9KB), 9kHz~1GHz (EMI-9KC)

• Frequency stability: 1x10^-6

• Frequency resolution: (9kHz~150kHz) 30Hz; (150kHz~30MHz) 1kHz

• Test Tolerance: ±2 dB

• Measure and Detection method: PK, QP and AV

• Measure range from 20dBμV to 140dBμV

• Frequency scanning step length: 20Hz~2MHz

• Sweep bandwidth: 200Hz; 9kHz; 120kHz

• Connect PC via USB cable and software can run on Win7, Win8 and Win10

VIDEO

EMI-9KB

Datasheet

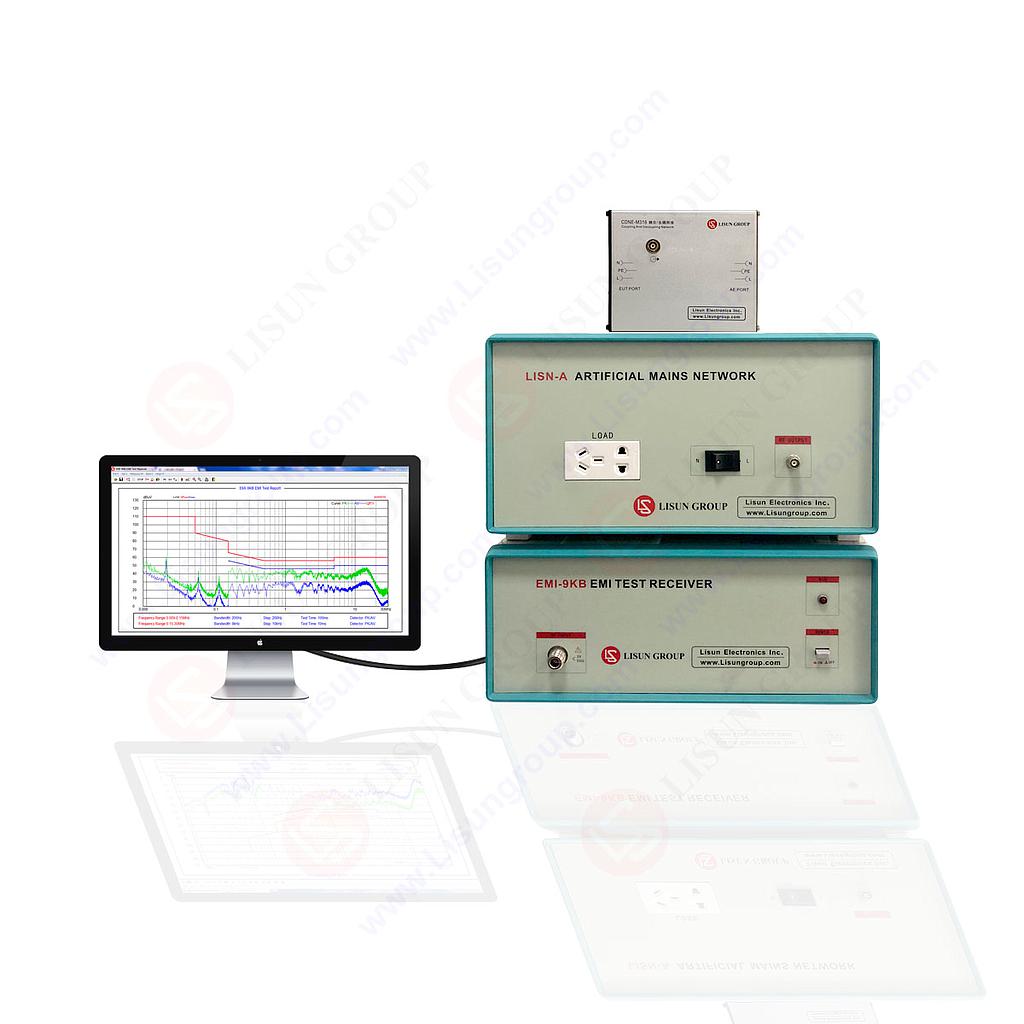

EMI-9KC/EMI-9KB is an automatic EMI receiver system for EMI (Electromagnetic Interference) radiation conduction testing. The EMI-9KC/EMI-9KB is produced by the full closure structure and strong electro-conductibility material, which has high shielding effect. Due to the new technology for the EMI Test System, it solved the instrument self-EMI problem. The test results are according to the international format test report. The EMI Test System EMI-9KC/EMI-9KB fully meets CISPR15, CISPRl6-1, GB17743, FCC, EN55015 and EN55022.
