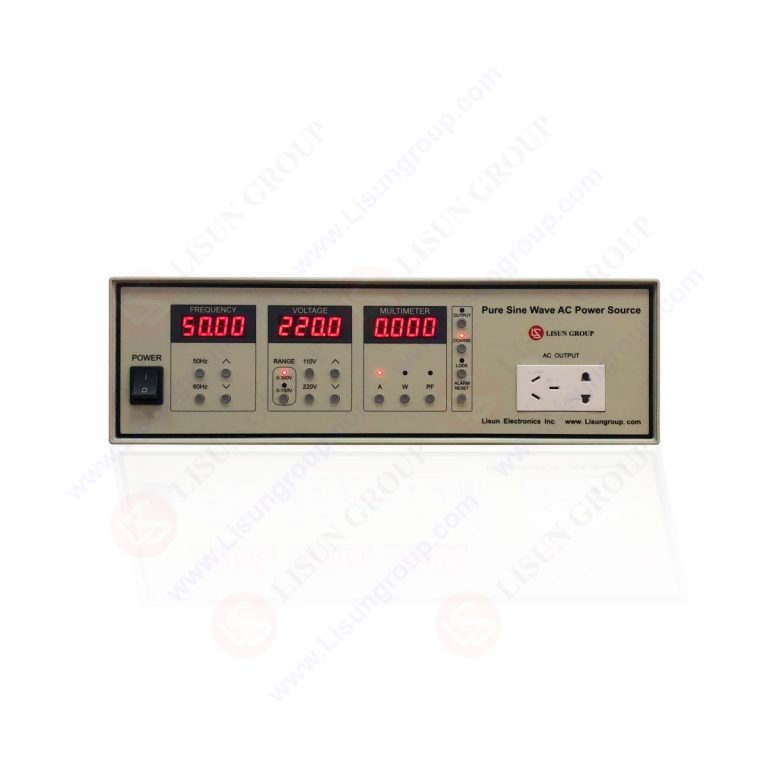

Lisun LSP-1KVAR AC Power Source (1KVA)

Adjustable Frequency 45Hz to 400Hz AC Power Supply specifications:

• Output Power: 1KVA

• Specification: 0~150V is 8.4A and 150~300V is 4.2A

• AC-DC-AC frequency conversion technology, Controlled & tested by 16 bits MCU

• Protection for over hot, thundering voltage and current

• Total voltage distortion: ≤0.2%; Voltage stability: ≤0.05%/30min

• Load adjust rate: ≤0.05%; Frequency stability: ≤0.01%/30min

• Output voltage range: AC 0.0~300.0V, Output Frequency Range: 45~70Hz, 100Hz, 200Hz and 400Hz

• It is pure sine wave AC power source with low harmonic and high accuracy

• Input Power: 220V and 50/60Hz (110V can be option)

• Communicate with PC via software, the Voltage & Current set by the software and Power Output can be remote controlled.

Datasheet
