Overview

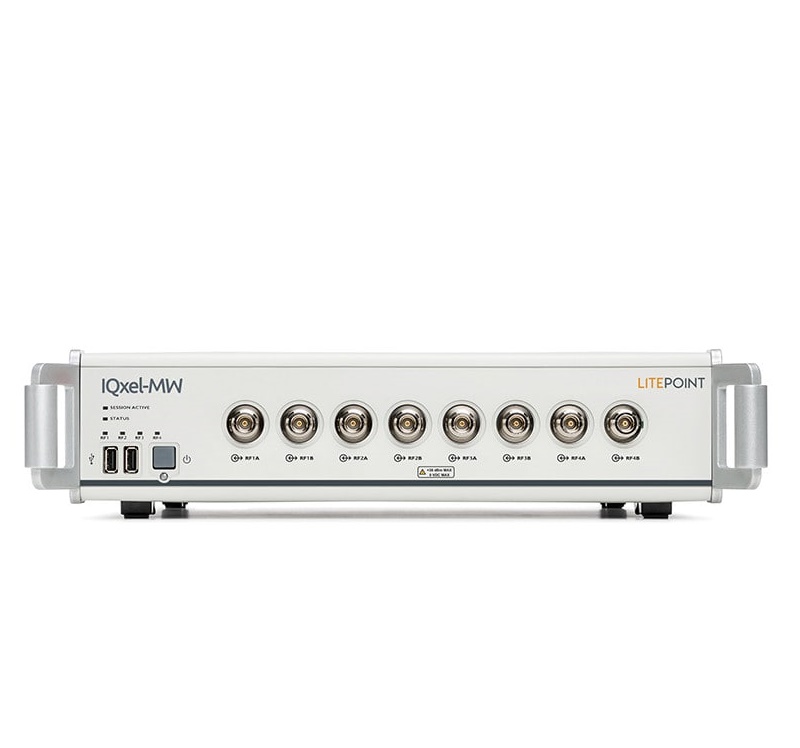

IQxel-MW™ is a comprehensive, multi-device test solution with superior performance for the next generation of WLAN and Bluetooth connectivity devices, ideal for both R&D and high-volume production.
The optimized performance ensures that you are truly measuring the device, and not measuring uncertainty in the measurement setup. This enables high test yield and minimal retest on the manufacturing floor.
As 802.11ac (Wi-Fi 5) and 802.11ax (Wi-Fi 6) technologies are adopted by device makers, product requirements are becoming more complicated, leading to complex test setups. IQxel-MW is equipped with new features that simplify production testing and lower production costs. The IQxel-MW series is available in three configurations—2 ports, 8 ports and 16 ports—which support up to 2×2, 4×4 and scalable to 8×8 true MIMO testing.
Designed for the Demanding Requirements of 802.11ax (Wi-Fi 6)
Class-defining residual EVM performance for 1024-QAM
Unrivaled RF port configurability, eliminating the need for external components in the test fixture
Native support for per-port 160 MHz and 80+80 MHz signal combination
Simultaneous dual-band test enabled (2.4 GHz and 5 GHz): ensures performance of TX/TX, TX/RX and RX/RX operating modes
Support for single-user OFDMA, multi-user OFDMA, Uplink and Downlink
Patented Packet Engine™ technology for 802.11ax MU-OFDMA power and timing control verification
Highest Test Throughput for Manufacturing
Industry-leading test speed and efficiency delivered by LitePoint’s patented Packet Engine™ technology
Parallel multi-DUT test architecture lets you independently start and stop testing for each device in the same test station
Re-use existing equipment, preserve your factory setup, and consolidate multiple test stations into one
Jump-Start Your Testing with Chipset Specific Test Solutions
Start testing immediately with IQfact+™ software solutions for leading WLAN and Bluetooth chipsets
Growing library of hundreds of chipset-specific test solutions save setup time and development costs
Fully backward compatible with existing LitePoint connectivity test systems
OFDMA Pre-correction Test Solution for Wi-Fi 6 Certification
Complete solution with IQsniffer (Wi-Fi traffic sniffer) option
Integrated implementation capable of capturing and analyzing complex interactions between Wi-Fi 6 OFDMA participants
Simultaneous analysis at the MAC and RF PHY layers for all users and streams
Simplifies troubleshooting and debugging of Wi-Fi 6 MU-MIMO and OFDMA features
Allows engineers to achieve faster time to market with Wi-Fi 6 compliant devices
Wireless Technology Options (WLAN, Bluetooth, LPWAN, Cellular)
Wi-Fi, 802.11ax (Wi-Fi 6)
Wi-Fi, 802.11ac Wave 1 and Wave 2 (Wi-Fi 5)
Wi-Fi, 802.11a/b/g/j/n/p
Wi-Fi, 802.11af/ah
Bluetooth, Classic/EDR (1-4.x), Low Energy (4.0, 4.1, 4.2)
Bluetooth 5 and Bluetooth 5.1
Scalable to 8×8 true MIMO
Zigbee, Z-Wave and Wi-SUN
DECT
LTE
LPWAN, Sigfox / LoRa
Navigation: GPS, GLONASS, Compass and Galileo
When & Where to Use the IQxel-MW for Testing?
In lab and manufacturing environments
For products in the product characterization, PCB-level manufacturing or RF modules lifecycle stages
For high-performance 802.11ax-enabled networking, computing, mobile or gaming devices
