Sample size: 96 x 0.2 ml
Consumable materials: 96 well full skirt PCR reaction plate
System of reaction: 10-80ul
Range of temperature: 0-100 ºC
Maximum rate of rise and fall: 5ºC/s
Uniformity of temperature: ≤±0.3ºC
Accuracy of temperature: ≤±0.2ºC
Temperature display resolution: 0.1ºC
Temperature control mode: Block\Tube
The temperature change rate is adjustable: 0.1-5ºC/s
Gradient temperature range: 30-100 ºC
Gradient setting range: Horizontal 12 columns: 1-30 ° C
Hot cover temperature range: 30-110 ºC
Heat cover height adjustment: Electric heat cover
Maximum procedure step: 30
Maximum number of program cycles: 100
Increasing/decreasing time: 1 Sec – 600 Sec
Temperature is increasing/decreasing: 0.1 to 10.0 ºC
Program pause function: There are
Power failure data protection: There are 4ºC
Heat preservation: Infinite length
Communication interface: USB2.0, RS232/RS485
Dimensions of main engine: 305mm×155mm×203mm (length × width × height)
Net weight of product: 15kg
Input power supply: 100-240VAC , 50/60Hz , 600 W
Product Introduction:

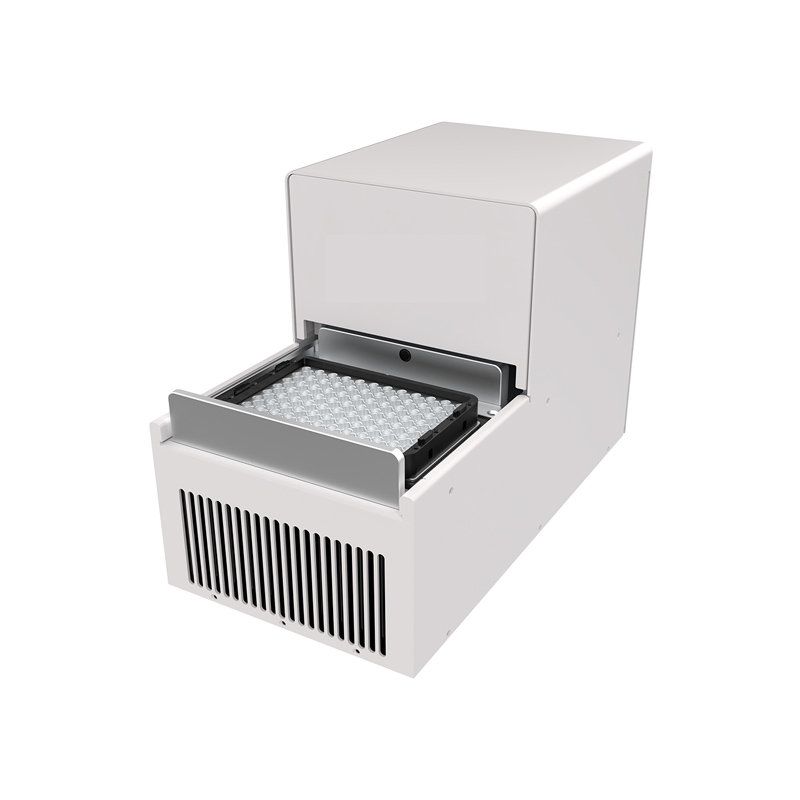

AUTO-96 automatic PCR amplification instrument can be connected to computer through USB port or RS232/RS485 port. All operations are completed on the special software for computer control of PCR instrument. After issuing running files, the machine can work without computer to ensure that the experiment is not affected by computer conditions. Fast rising and cooling rate, maximum rising and cooling rate 5ºC/s; Compact size, can be equipped with desktop pipetting workstation.
Features of the instrument
1). Adopt imported customized Peltier module with long life, the number of cycles is more than 1 million;
2) Engineering reinforced aluminum modules treated by anodizing technology, which not only retains rapid thermal conductivity, but also has sufficient corrosion resistance;
3) Fast rising and cooling rate, the fastest rising and cooling rate of 5ºC/s, saving valuable experimental time;
4). Electric adaptive hot cover, can be adapted to full skirt, half skirt 96 well PCR plate;
5) Small size, can be equipped with desktop pipetting workstation;
6) Connect to the computer through USB port or RS232/RS485 port, and all operations are completed on the special software for computer control of PCR instrument;
7) Can be run offline, in the computer crash or communication interruption, the machine work is not affected, the experiment can be carried out normally;
8) Automatic power failure protection, automatic execution of unfinished cycle after power supply is restored, to ensure the safe operation of the whole process of expansion;
9). Support to open the lid and add samples during the experiment to meet a variety of experimental requirements;
10). The control software can be upgraded through the computer without other tools.
