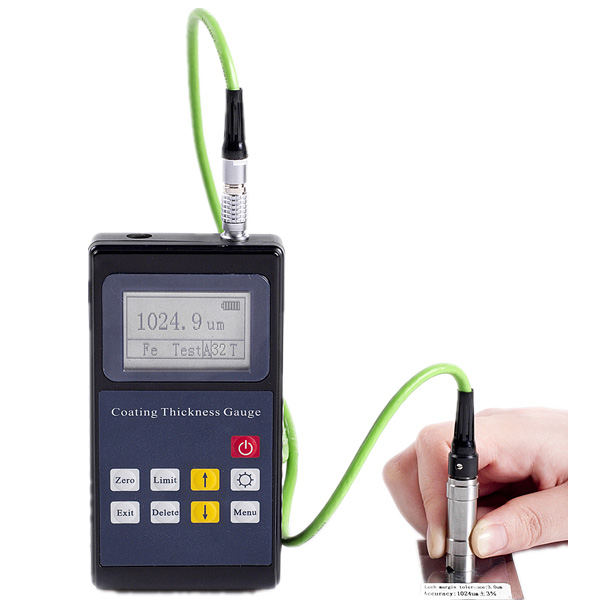

Measuring Materials
Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel
Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin
Measuring principle: NFe , Fe
Measuring range (µm): 0~1250μm
Probe: Changeable
Shell: Plastic
Accuracy: ±[ (1~3%)H+1] μm H refers to the thickness of testing piece
Minimum resolution (µm): 0.1μm
Min curvature of the min area (mm): Convex1.5 Concave9
Diameter of the min area (mm): Φ7
Critical thickness of substrate (mm): 0.5
Memory: 200 groups measured data
Dimensions: 115×70×30mm
Power supply: AAA Alkaline battery
Standard configuration: Main Machine,5 calibration specimens (48.5mm, 99.8mm, 249mm, 513mm 1024mm), 2 probe & substrate
Optional Accessories: Probes, Specimens
