Maximum test load (T): 60kg (can be customized)
Frequency range (0.01Hz): 1Hz to 600Hz
Amplitude (range mmp-p): 0 ~ 5mm
Maximum acceleration: 20g (randomly)
Vibration direction: vertical / horizontal / front and back
Vibration waveform: Sine wave (half wave / full wave)
Time control: any time can be set (seconds)
Power: 2.2KW
Table size (mm): 500 x 500 (can be customized)
Body size (mm): L * H * W 500 x 450 x 500
Power supply voltage (V): 220V
Current (A): 10A
1. Introduction:

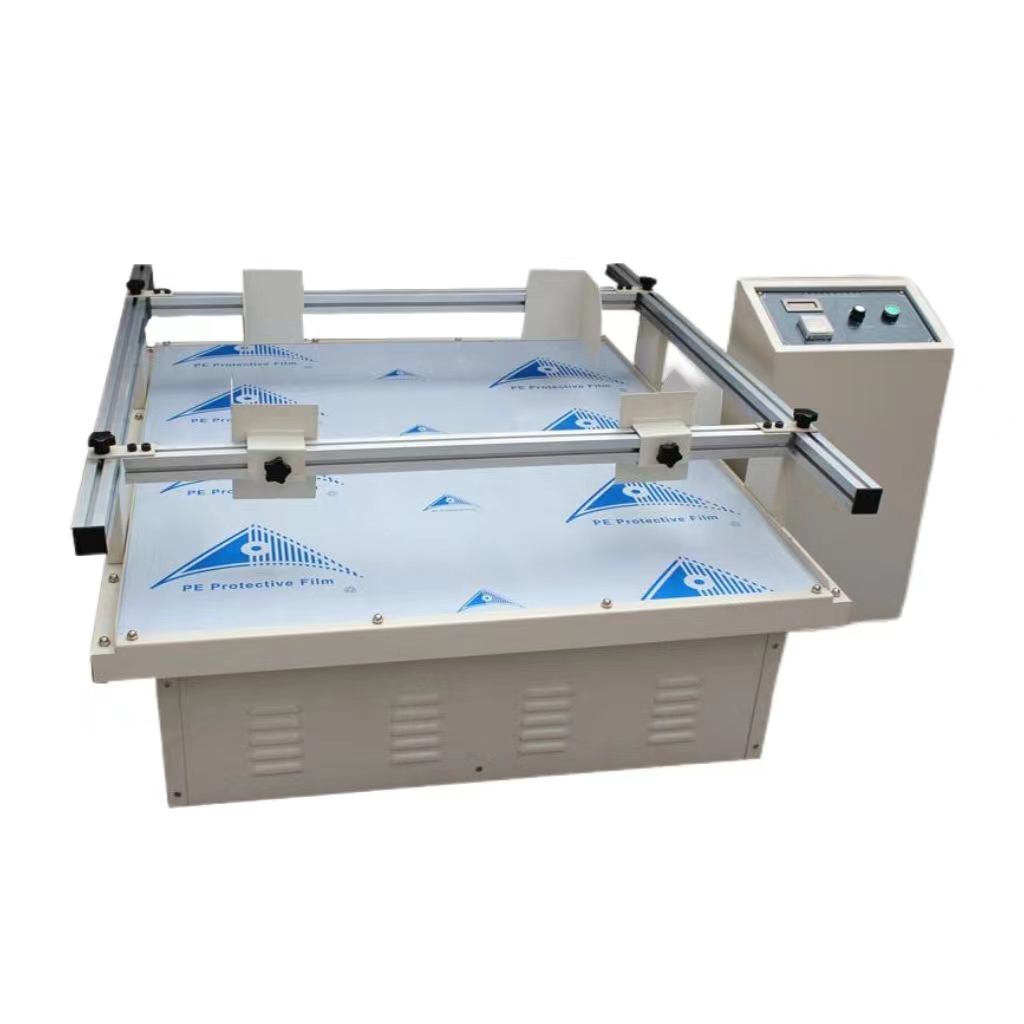

The transportation vibration tester is based on the United States and European transport standards, and with reference to the United States similar equipment improved manufacturing. The eccentric shaft is used to generate an elliptical motion trajectory in rotation to simulate the vibration and collision of goods generated during transportation of a car or a ship. The test platform is fixed on the eccentric bearing. When the eccentric bearing rotates, the entire plane of the test platform will have an elliptical up and down motion. Adjusting the eccentric shaft with the rotation speed is equivalent to adjusting the driving speed of the car or the ship.
2. Standard:
This machine is suitable for toys, electronics, furniture, gifts, ceramics, packaging and other products for simulation transport testing, conformance to EN, ANSI, UL, ASTM, ISTA US, European, international transport standards.
Shake table
3. Product features:
Digital meter shows vibration frequency
Synchronous squelch belt drive with extremely low noise
The sample is clamped by rail, which is easy to operate and safe.
The base of the machine is equipped with heavy-duty channel steel with vibration-damping rubber pad. It is easy to install and runs smoothly. No need to install anchor screws.
DC motor speed regulation, stable operation and strong load capacity
Rotary vibration (commonly known as horse racing), in line with European and American transportation standards
