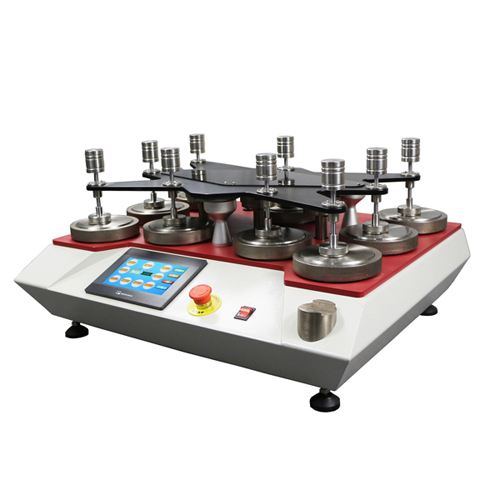

Used for measuring wear resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, woven fabrics, coated fabrics and non-woven fabrics.

Technical parameters :

1. Number of stations: 9 bits

2. Counting range: 0 ~ 999999 times

3. Maximum dynamic range: horizontal: 60.5 + 0.5mm vertical: 24 + 0.5mm

4. Pressure quality:

A, holder: 198 + 2 2g

B, material specimen weight: 395 + 2 2g

1. Sample weight of furniture decoration: 594 + 2 2g

D, B type clamping device: 155, plus or minus 1 g

E, stainless steel butterfly plate: 260 + 1g

5. Effective friction diameter of grinding block:

Type A 198 g (1.96 N) friction head Φ 28.65 + / – 0.05 mm

Friction type B 155 g (1.52 N) Φ 90 + / – 0.10 mm

6. The relative speed of the clamping device and the grinding table: 50/2r/min

7. Quality of sample weight: 2385 + 10g

8. Dimensions: 885 x 600 x 410mm

9. Power supply: Ac220V 50Hz 500W

10. Weight: 170kg
