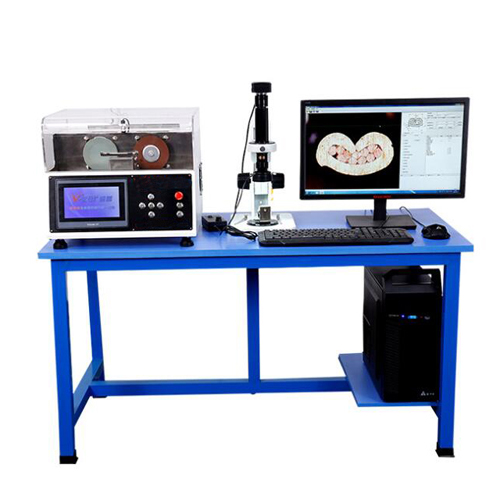

1. Main technical indicators
Wire diameter range: (ø 0.10mm – ø 20.00mm including terminal)
Speed: 2800 RPM
Cutting speed: automatically adjustable
Cutting wheel: φ105 x 0.5 xφ16mm
2. Polish the module
Speed: 1400 RPM
Z fine tuning range: 0.0mm to 20.0mm (automatically adjustable)
Velcro abrasive paper: Diameter 100mm 1000# 2000# 3000# (optional)
3. Corroded part
Corrosion time: 5 to 30 SEC
4. Picture intake and analysis
5. Megapixel industrial camera
Standard magnification: about 36-230x (can be digitally enlarged to 500X)
Objective lens intertooth multiples: 0.7x,1x, 2x, 3X, 4x, 4.5x
Ultra bright white LED light source adjustable control
5. Analysis and archiving
V3.2 version of the measurement software, including compression ratio, such as enhanced measurement tools.
6. the power supply: 230 VAC, 50Hz, 600 w
7. Volume and weight
Weight: about 30 kg
Volume: 500mm (l) x 350mm (W) x 350mm (H)
8. Software Functions:
Compression ratio, number of wire harness, crimping height, crimping width, sectional area, support height, support Angle, burr width, burr height, etc
