Frequency: 868 MHz, 915 MHz
Dimensions: 20 mm x 15 mm x 2.2 mm
Unit Weight: 2 g
Output Power: - 3 dBm
Interface Type: SDI, SDO
Protocol - Sub GHz: ISM

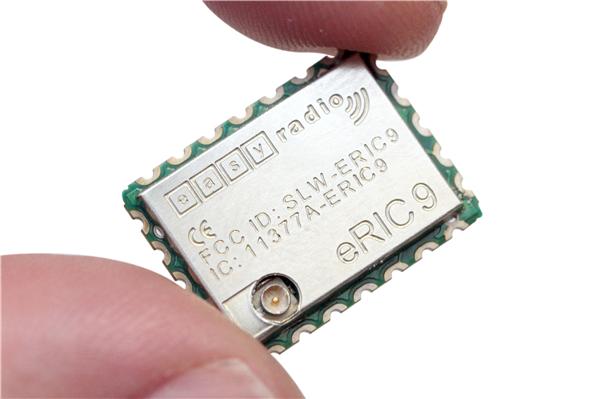

Description/Function: Radio transceiver module is based on the CC430F5137 System-on-Chip device
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.5 V
Antenna Connector Type: External
Operating Supply Voltage: 3.6 V
Supply Current Receiving: 15 mA
Supply Current Transmitting: 32 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
