Description:

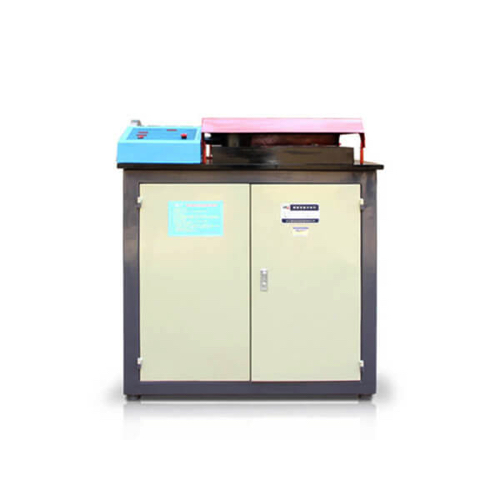

GW-40C cold bend testing machine is an important test facility for steel and construction units to check the bending and bending properties of reinforcing bars. Bending tests on steel bars for reinforced concrete, bending the bar at 180° or to bend the same at 90° and then straighten if of at least 20°.
Specification:
Steel bar: Ф 6- 40mm
Bending angle: 0 -180
Main cylinder Dia.: Ф 580mm
Working disk speed: <3.7r/min
Power: 380V AC (optional 220V AC)
Motor power: 1.5kW
Machine weight: 700kG
Machine size: 1200*750*1000mm
