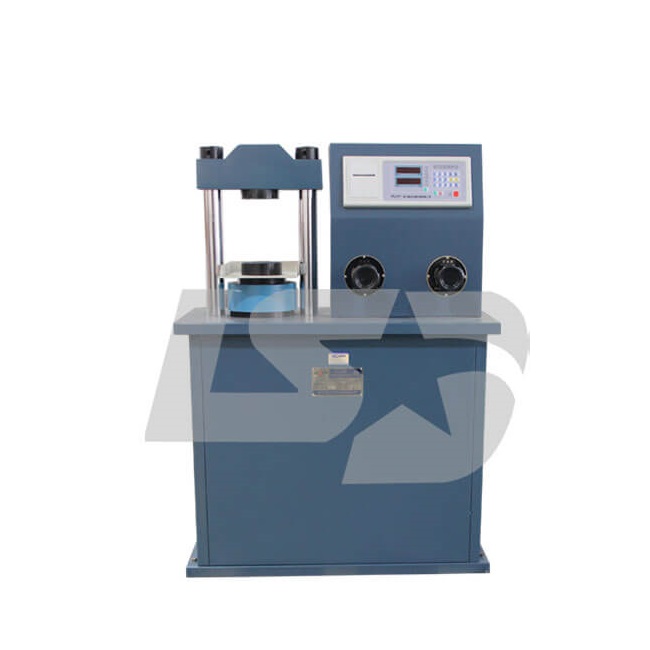

Ludatest TSY-300 Compression Testing Machine (300kN)

Description:

This product is applicable to the compressive strength test of cement, cement mortar, red brick, and other building materials. 300kn compression testing machine adopts hydraulic loading, electronic force measurement, with load digital display, loading speed display, maximum load maintenance, overload protection and power failure data protection and other functions. Automatic test data processing and printing out test reports.

Specification:

Max Test Force: 300 kn

Measure Range: 5-100 %

Load Indication Accuracy: ±1 %

Max Pressing Space: 190 mm

Bearing Plate Diameter: Φ140 mm

Machine Size: 880*430*1100 mm

Net Weight: 280 kg
