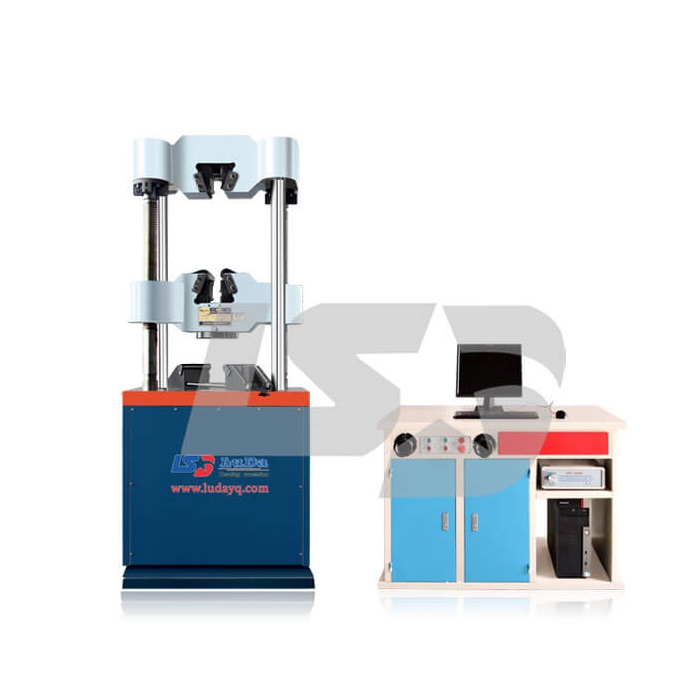

Ludatest WEW-300B Screen Display Universal Testing Machine (300kN)

Description:

WEW series computer screen display hydraulic universal testing machine is mainly used for tensile, compression, bending and shearing tests of metal materials, plastics, concrete, cement and other metal non-metallic materials. By adding simple accessories, the mechanical properties of tape, chain, wire rope, electrodes and various components can be tested. The test results directly display data on the computer and print through the printer.

Specification:

Max Test Force: 300 kn

Measure Range: 5-100 %

Relative Error Value: ±1/±0.5 %

Max Tensile Space: 600 mm

Max Compression Space: 500 mm

Piston Stroke: 150 mm

Size of Upper and Lower Platen: Φ176, Φ176 kw

Voltage: AC220/AC380V±10% 50Hz

Machine Size: 770*500*1900 mm

Net Weight: 1800 kg
