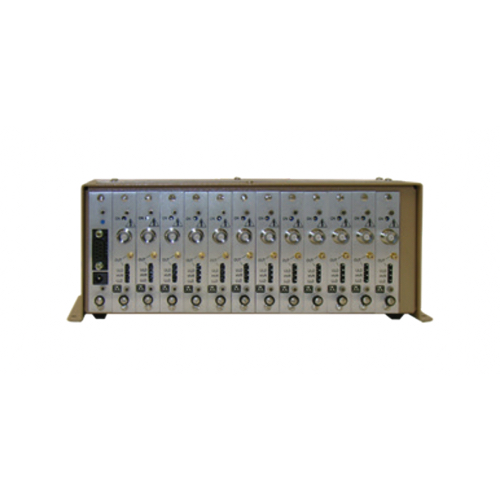

Description: 7 Channel SCA
Compatible Detectors: GM, Proportional, Scintillation
High Voltage: Adjustable from 0 to 1500 V (optional 0 to 2500 V)
Threshold: Adjustable from 5mV to 3300 mV
Window: Adjustable from 5 mV to 3300 mV (can be enabled or disabled)
Amplifier Gain: Adjustable from 1 to 15 V/V
Amplifier Range: 0 to approximately 3 V
Temperature Range: -15 to 50 °C (5 to 122 °F)
May be certified to operate from -40 to 65 °C (-40 to 150 °F)
Data Output: 9-pin RS-232 port for connection to PC for data download and adjustment of setup parameters. A one meter RS-232 to USB adapter cable is included. PC interface software is available for download here.
Power: 7.5 to 36 Vdc at 3 W maximum
Connector: Series “BNC” (others available)
Size (H x W x L): 10.9 x 29.2 x 10.7 cm (4.3 x 11.5 x 4.2 in.)
Weight: Model 4612: 1.7 kg (3.8 lb)
Software: Provided computer software package allows for setting and changing of all parameters including HV, Threshold, Window, Scaler Count Time, and Output Time. An HV Plateau Routine allows for detector plateauing of any or all channels of the instrument. Other features include data logging capabilities and scaler operations in slave or recycle modes.
